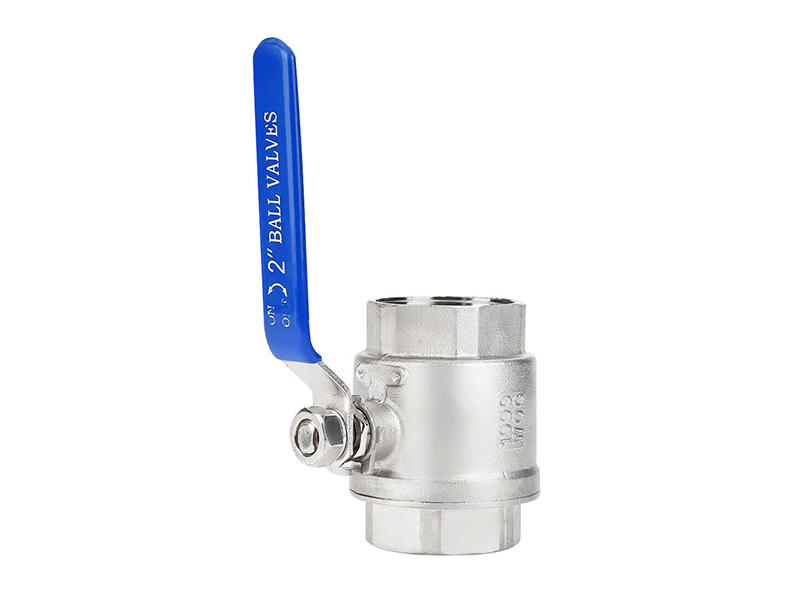

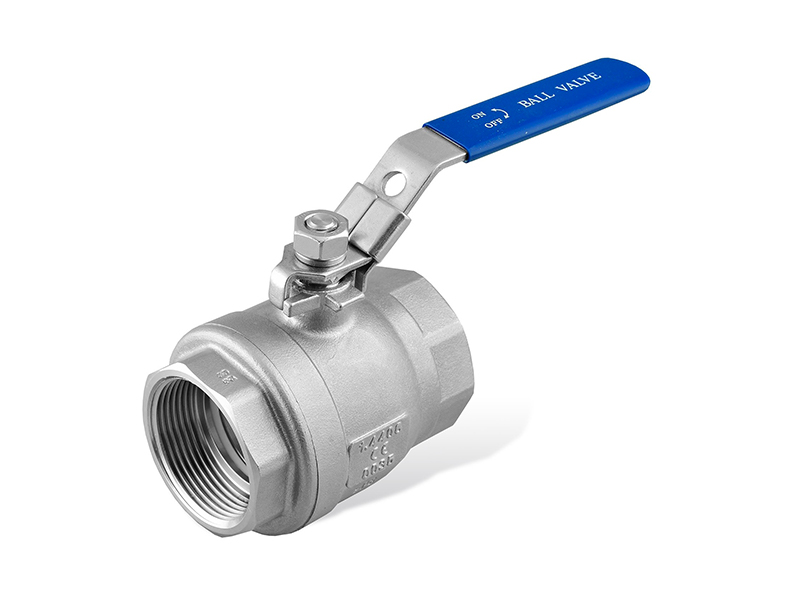

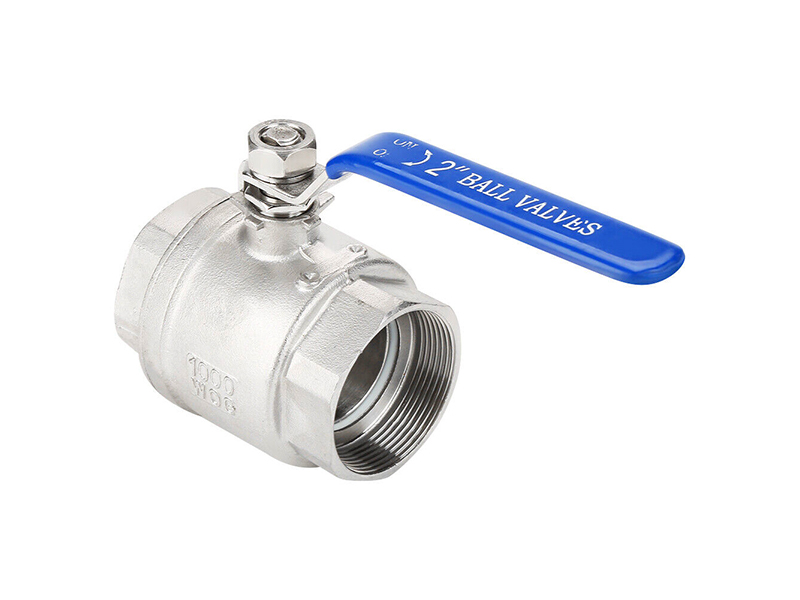

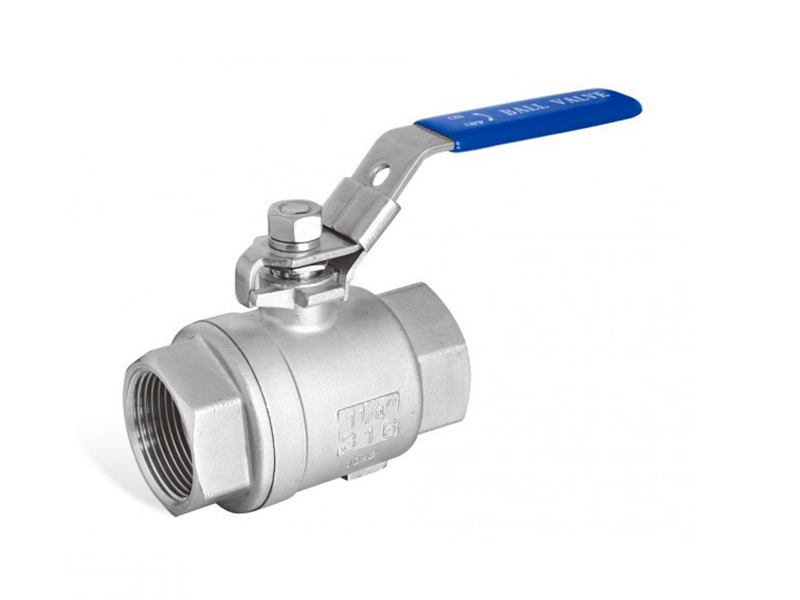

2PC Ball valve female thread stainless steel

Features: Size: 1/2'' To 4'' Inch
Material: Stainless Steel
End Connection Type: Threaded
Pressure: 1.0-1.6 Mpa
Media: Working pressure 1000 psi for Water, Oil, Gas
Temp Range: -10 to 150 ℃

We're here to help:
Easy ways to get the answers you need.

  • Parameter
  • Standards&Features
  • Case
  • Application
  • Inquiry

Parameter:

What is a ball valve?

A ball valve is a type of valve that uses a ball-shaped disc to control the flow of fluids or gases. The ball is positioned in the center of the valve body and rotates to allow or block fluid flow. The ball has a hole or port through the center that aligns with the inlet and outlet ports of the valve when it is in the open position. When the valve is turned to the closed position, the ball rotates to block the fluid flow.

Ball valves are known for their reliability, ease of operation, and ability to provide tight shut-off when closed. They are used in various industrial, commercial, and residential plumbing systems.


The working principle of a ball valve:

The working principle of a ball valve is based on the rotation of a ball-shaped disc or sphere inside the valve body. The ball has a hole or port through the center that allows fluid or gas to flow through the valve in the open position. Here are the steps involved in the working principle of a ball valve:

1. In the open position, the ball is positioned with its hole in line with the inlet and outlet ports of the valve, allowing fluid to flow through.

2. When the valve handle or actuator is turned or activated, the ball rotates to close the valve. The hole in the ball is now perpendicular to the inlet and outlet ports, blocking the fluid flow.

3. A seat or sealing mechanism holds the ball in place, preventing fluid from leaking around the ball when the valve is closed.

4. To open the valve, the handle or actuator is turned or activated in the opposite direction, causing the ball to rotate back to its original position and allowing fluid to flow through again.

Ball valves are known for their reliability, ease of operation, and ability to provide tight shut-off when closed.


There are several common materials used for ball valves, including:

1. Stainless steel:

This is a common material used for ball valves because of its durability, resistance to corrosion, and ability to withstand high temperatures and pressures.

2. Bronze:

Bronze ball valves are commonly used in marine and industrial applications because of their resistance to seawater and corrosive chemicals.

3. PVC:

PVC ball valves are used in applications where chemical resistance and low cost are important factors.

4. Carbon steel:

Carbon steel ball valves are used in high-pressure and high-temperature applications that require a durable and reliable valve.

5. Cast iron:

Cast iron ball valves are used in applications requiring high strength and durability.

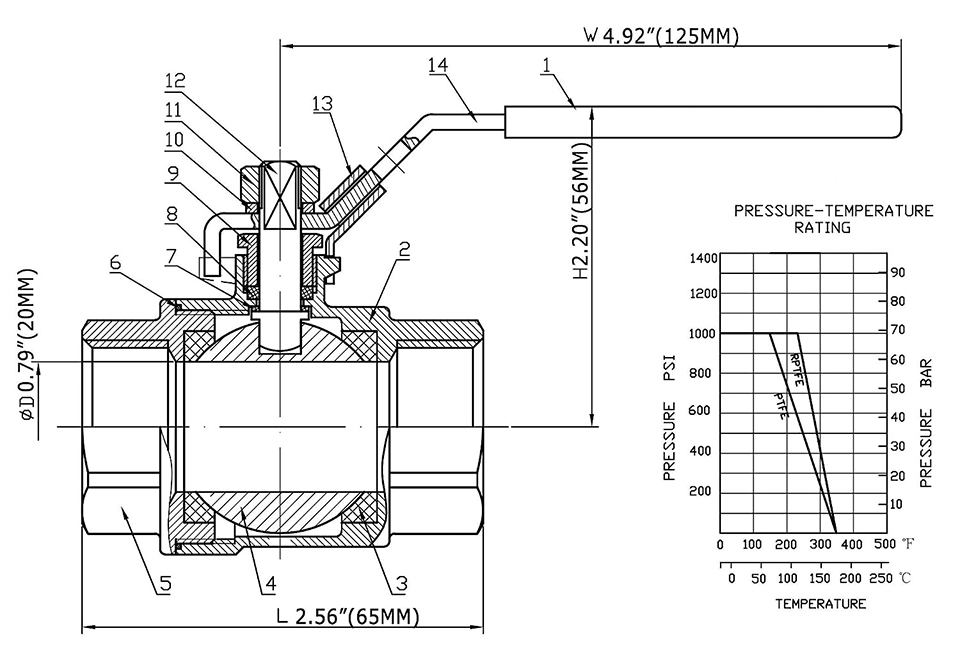

Nominal

Gas thread

Dimension(mm)

Weight WT(g)

Diameter

d

L

W

H

E

D

D

6

1/4″

8

60

110

56

11.5

30

320

10

3/8″

18

60

110

58

11.5

31

320

15

1/2″

10.5

60

110

58

14

32

350

20

3/4″

13

67.5

110

62

15

38

430

25

1″

17

73

110

68

15

45

570

32

1 1/4″

22

90

150

75

18

53.4

1000

40

1 1/2″

25

97.5

150

83

19

63

1550

50

2″

32

112

150

90

19

73

2170

65

2 1/2″

40

132

180

95

21

92

3625

80

3″

50

156

220

100

27

109

5800

100

4″

65

196

250

115

29

138

7200



WESDOM Advantages

1.WESDOM patent products, patent certification

The product side flanges comply with national, German, Russian, American, British and Japanese standards and other domestic and international standards for multiple pressures, easy connection and wide adaptability, which can reduce the type of purchase and stock.

2.The product has an independent identity to ensure traceability

Each wesdom product has its own unique identification number, to ensure product traceability.

3.Provide material inspection report

All wesdom products can provide the material inspection report of the main parts.

4.One-stop service

One-stop service, we not only supply high quality products, also supply solutions and after-sales service.

5.WESDOM has a lot of project experience

We have a lot of project experience in countries such as Pakistan and the Philippines, WESDOM has always been noticed all over the world, and trust comes from quality.

6. WESDOM has a strict quality control system

WESDOM has a strict quality control system and before delivery, we test 100% of each product to ensure its quality, promising you a high quality product.

Quality Control Process





Standards&Features:

Advantages of stainless steel threaded ball valve:

1. Corrosion resistance:

Stainless steel is highly resistant to corrosion, making these valves ideal for use in harsh environments where other materials may fail.

2. Durability:

Stainless steel threaded ball valves are durable and long-lasting, with a high resistance to wear and tear.

3. High temperature and pressure resistance:

Stainless steel can withstand high temperatures and pressures, making these valves suitable for use in a wide range of industrial applications.

4. Easy installation and maintenance:

The threaded ends of the valve make them easy to install and remove for maintenance or repairs.

5. Tight shut-off:

Stainless steel threaded ball valves provide a tight shut-off when closed, preventing leaks and ensuring safe operation.

6. Versatility:

Stainless steel threaded ball valves can be used in a wide range of applications, including oil and gas, chemical processing, food and beverage, water treatment, and more.

Case:

WESDOM Group specializes in pipeline fluid systems: R&D, production and sales of valves, pipe fittings, water meters, flow meters, etc. The products cover cast iron, cast steel, stainless steel, copper, plastics and other materials, which are widely used in hydropower stations, heat, buildings, Water supply and drainage, petroleum, chemical industry, electric power, medical and other fields.

Why more and more customers are choosing wesdom valves:

1. There is a professional technical team, and quality is guaranteed

2. Independent factory, more favorable price

3. Extensively trained employees are well-versed in all aspects of flow control technology




Application:

Stainless steel threaded ball valves are commonly used in a wide range of industrial applications, including:

1. Oil and gas:

These ball valves are used in pipelines and equipment for the transportation and processing of oil and gas, including refineries, petrochemical plants, and offshore platforms.

2. Chemical processing:

Stainless steel threaded ball valves are used in chemical plants to control the flow of corrosive and hazardous chemicals.

3. Pharmaceutical:

These ball valves are used in pharmaceutical manufacturing processes to control the flow of fluids and gases in a sterile environment.

4. Food and beverage:

Stainless steel threaded ball valves are used in food and beverage processing facilities to control the flow of liquids and gases, including water, juice, and beer.

5. Water treatment:

These ball valves are used in water treatment plants to control the flow of water, including potable water, wastewater, and industrial process water.
