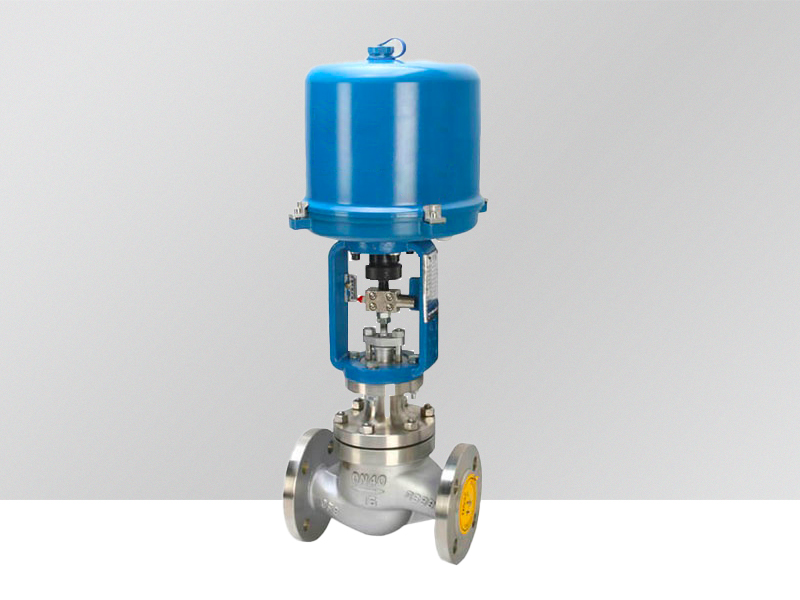

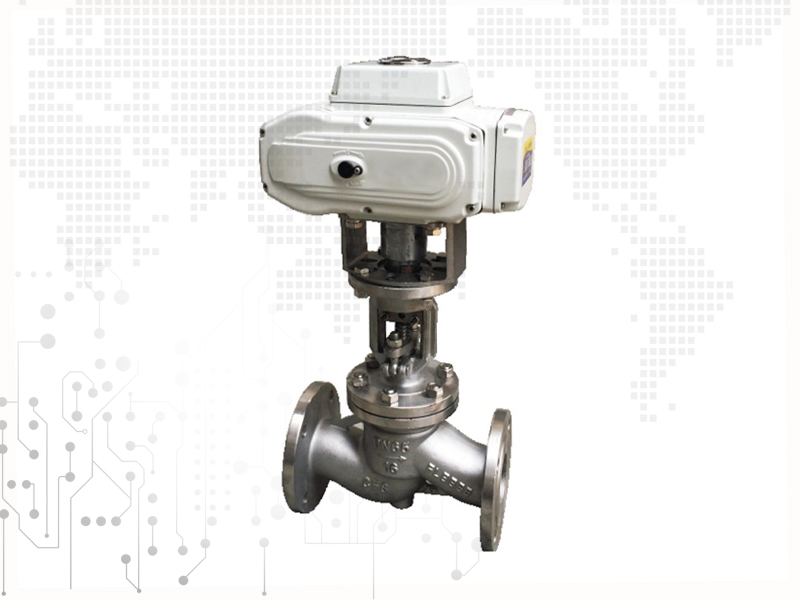

electric motorized control stainless steel SS316 globe valve

Features: Material: Casting
Temperature of Media: Normal Temperature
Pressure: Low Pressure
Power: electric
Media: gas, water,
Port Size: Standard

We're here to help:
Easy ways to get the answers you need.

  • Product parameter
  • Adoptive standards
  • Features
  • Application
  • Inquiry

Product parameter:

380V electric motorized control stainless steel SS316 globe valve
NO. Part Names  Material
1 Valve body WCB, 1Cr18Ni9Ti
2 Spacer  Expanded graphite+stainless steel, PTFE
3 Bolt  Stainless steel 304
4 Disc sealing  WCB, 304, 1Cr18Ni9Ti+PTFE
5 Splint collar 1Cr18Ni9Ti
6 Disc cover  1Cr18Ni9Ti
7 Valve stem 1Cr18Ni9Ti, 2Cr13
8 Nut  35, 304
9 Eye bolt 35, 304
10 Gland  WCB, 1Cr18Ni9Ti
11 Bolt  35, 304
12 Soacer  35,  1Cr18Ni9Ti
13 Packing  Expanded graphite
14 Packing plate WCB, 1Cr18Ni9Ti
15 Nut  35, 304
16 Yoke WCB, 1Cr18Ni9Ti
17 Bolt  35, 1Cr18Ni9Ti
18 Bolt  35, 1Cr18Ni9Ti
19 Coupling  35, 1Cr18Ni9Ti
20 Actuator  FOSD

Adoptive standards:

Nominal diameter DN(mm) DN15-DN100
End connection Double Union, Flange
Valve body material UPVC(-10°C-+70°C),CPVC(-40°C-+95°C) RPP(-14°C-+100°C),PVDF(-40°C-+140°C)
Spool material UPVC(-10°C-+70°C),CPVC(-40°C-+95°C) RPP(-14°C-+100°C),PVDF(-40°C-+140°C)
Applicable medium PVC chemical solvent compatible food industry

Features:

Items
Parameter
FOSD-05 FOSD-10 FOSD-16 FOSD-30 FOSD-60 FOSD-125 FOSD-250 FOSD-400
Output torque  50Nm 100Nm 160Nm 300Nm 600Nm 1250Nm 2500Nm 4000Nm
Rated travel time 20S 15S/30S 30S/60S 100S 100S 100S
Rotation angle 0°-90° 0°-90° 0°-90° 0°-90° 0°-90° 0°-90° 0°-90° 0°-90°
Working current  0.25A 0.48A 0.68A 0.8A 1.2A 2A 2A 2.7A
Starting power  0.25A 0.48A 0.72A 0.86A 1.38A 2.3A 2.3A 3A
Motor power  10W/F 25W/F 30W/F 40W/F 90W/F 100W/F 120W/F 140W/F
Weight 3kg 5kg 5.5kg 8kg 8.5kg 15kg 15.5kg 16kg
Power  AC220V,       AC24V,     AC110V ,    AC220 ,       AC380,      DC24V (choose options)
Input signal 4-20mA (Modulating type)
Output signal 4-20mA (Modulating type)
Inbreaking protection  IP65/IP67
Installation angle 360° any angle
Electrical Interperation one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity   -30°C  to +60°C
Pilot circuit option A:with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C:with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G:Three-phase current 380V control circuits style
H:Three-phase current 380V, both neutral position switch and potentiometer style

Application:

1.Chemical industry;
2.Metallurgy;
3.Power;
4.Paper-making;
5.Pharmacy;
6.Food;
7.Water-treatment.
