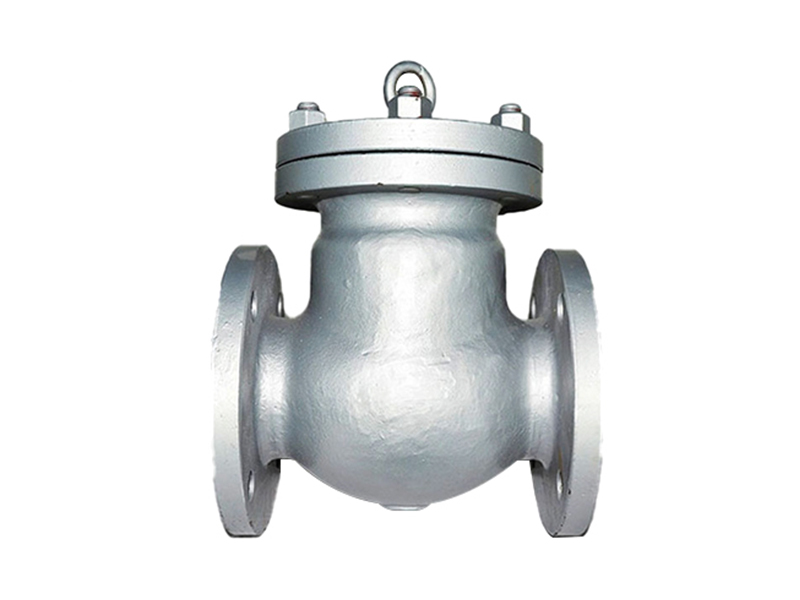

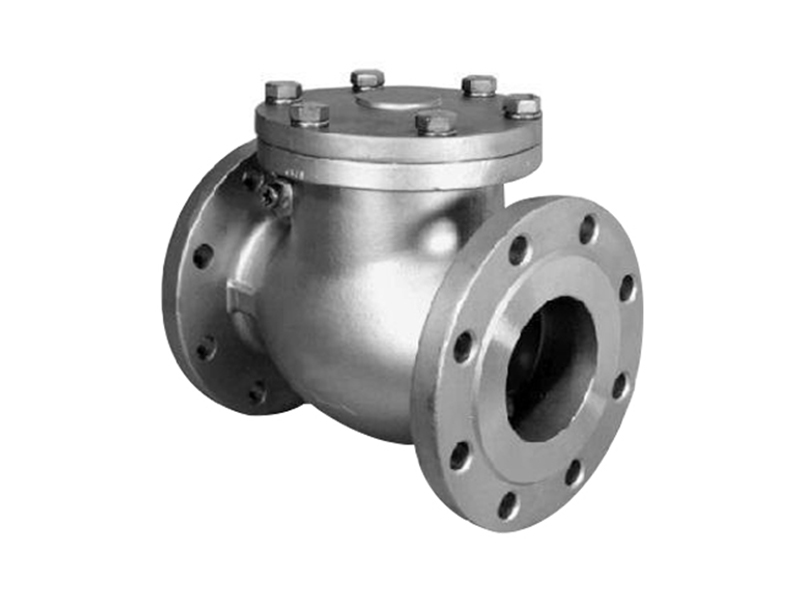

Stainless Steel flange Check Valve
Features:
Size: 1-1/2”~24”
Pressure Rating: PN10-PN64,150LB-600LB，10K-20K
Material: SS304, SS316
Design Standard: API6D,ASME B16.34,GB/T12236,JISB2074
Inspection Standard: API598,JB/T9092,JISB2003
Application medium: Water, Sewage, Gas
Application Temperature: -20℃-425℃
We're here to help:
Easy ways to get the answers you need.

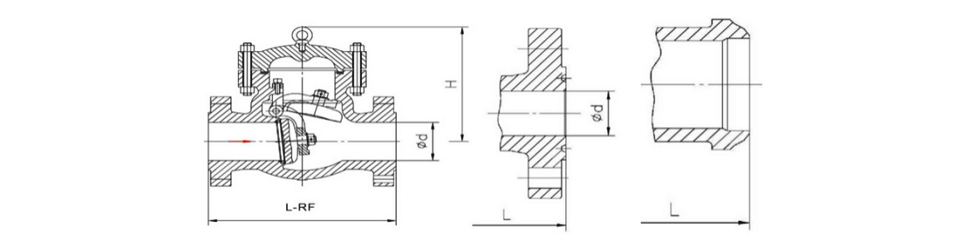

Parameter:
|
Size |
Class 150 Dimensions(mm) |
Class300 Dimensions(mm) |
|||||||||||
|
|
L |
Weight (Kg) |
Weight (Kg) |
|
|
|
|
|
|
|
|||
|
NPS |
DN |
RF |
RTJ |
BW |
|
|
RF |
RTJ |
BW |
|
|
|
|
|
2 |
50 |
203 |
216 |
203 |
51 |
138 |
14 |
267 |
283 |
267 |
51 |
150 |
22 |
|
必 |
65 |
216 |
229 |
216 |
64 |
160 |
19 |
292 |
308 |
292 |
64 |
178 |
35 |
|
3 |
80 |
241 |
254 |
241 |
76 |
172 |
24 |
318 |
333 |
318 |
76 |
223 |
44 |
|
4 |
100 |
292 |
305 |
292 |
102 |
245 |
43 |
356 |
371 |
356 |
102 |
255 |
57 |
|
5 |
125 |
330 |
343 |
330 |
127 |
260 |
59 |
400 |
416 |
400 |
127 |
280 |
80 |
|
6 |
150 |
356 |
368 |
356 |
152 |
280 |
72 |
445 |
460 |
445 |
152 |
310 |
120 |
|
8 |
200 |
495 |
508 |
495 |
203 |
347 |
124 |
533 |
549 |
533 |
203 |
355 |
194 |
|
10 |
250 |
622 |
635 |
622 |
254 |
390 |
196 |
622 |
638 |
622 |
254 |
145 |
290 |
|
12 |
300 |
699 |
711 |
699 |
305 |
435 |
330 |
711 |
727 |
711 |
305 |
185 |
450 |
|
14 |
350 |
787 |
800 |
787 |
337 |
465 |
417 |
838 |
854 |
838 |
337 |
515 |
587 |
|
16 |
400 |
864 |
876 |
864 |
387 |
525 |
503 |
864 |
879 |
864 |
387 |
560 |
761 |
|
18 |
450 |
978 |
991 |
978 |
438 |
580 |
630 |
978 |
994 |
978 |
432 |
1030 |
|
|
20 |
500 |
978 |
991 |
978 |
489 |
615 |
791 |
1016 |
1035 |
1016 |
483 |
685 |
1191 |
|
24 |
600 |
1295 |
1308 |
1295 |
591 |
710 |
960 |
1346 |
1368 |
1346 |
584 |
760 |
1892 |
|
26 |
650 |
1295 |
– |
1295 |
633 |
840 |
1250 |
1346 |
1372 |
1346 |
633 |
850 |
2300 |
|
28 |
700 |
1448 |
– |
1448 |
684 |
920 |
1580 |
1499 |
1524 |
1499 |
684 |
920 |
2600 |
|
30 |
750 |
1524 |
– |
1524 |
735 |
980 |
1950 |
1594 |
1619 |
1594 |
735 |
1150 |
3200 |
|
32 |
800 |
1727 |
– |
1727 |
779 |
1016 |
2800 |
1727 |
– |
1727 |
779 |
1260 |
3700 |
|
36 |
900 |
1956 |
– |
1956 |
874 |
1092 |
3200 |
2083 |
. |
2083 |
874 |
1390 |
4300 |
Standards&Features:
Features：
1. Valve flow is streamlined with low resistance.
2. The opening and closing part is controlled by the medium itself to prevent backflow.
3. The sealing pair is advanced and reasonable. The sealing surface of the valve disc and the valve seat is welded by iron-based alloy or silicon tartar cobalt-based carbide, so it has the advantages of wear resistance, high temperature resistance, corrosion resistance and scratch resistance. . And it has a long service life.
4. The product can be used in various pipe flange and flange standard and flange sealing types to meet various engineering needs and user requirements.
5. There are a wide variety of valve bodies. Gaskets can be reasonably matched to the actual situation or user requirements and can be applied to a variety of pressure, temperature and media conditions.
Case:
Project Name: Pakistan Petroleum Project
Customer name: a customer of Pakistan Petroleum
Main products: API valves and fittings
Customer demand: oil project use
Project description:
All valves and fittings were through SGS Inspection.
client feedback:
WESDOM is a very trustworthy team, not only professional, but also caring and enthusiastic in service. If there is a demand in the future, we will choose WESDOM without hesitation.

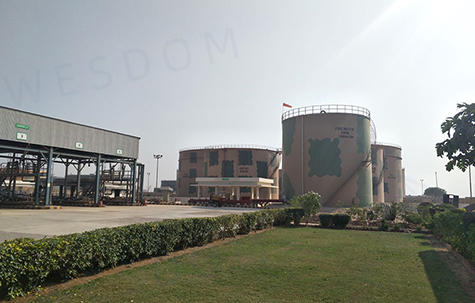

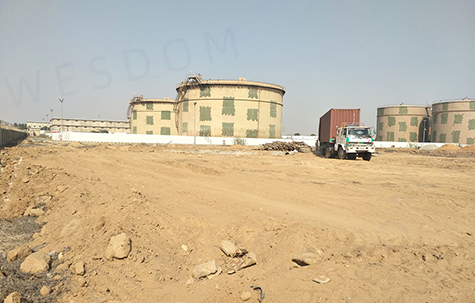

Project pictures:
