Oil & Gas Pipeline Valve Solutions

2026-04-21

Oil & Gas Pipeline Valve Solutions: Complete Guide for Transmission & Distribution

A comprehensive guide to oil & gas pipeline valve solutions, covering API 6D valves, ball valves, gate valves, check valves, and their applications in upstream, midstream, and downstream operations.

Oil and gas pipelines are the lifelines of the global energy industry, transporting crude oil, natural gas, and refined products over long distances—often through harsh environments (deserts, oceans, cold regions) and under extreme conditions (high pressure, high temperature, corrosive media).

Valves play a critical role in these pipelines, controlling flow, isolating sections, preventing backflow, and ensuring safety. The right valve solution must be reliable, durable, and compliant with strict industry standards to minimize downtime and ensure safe operation.

As a leading valve manufacturer specializing in oil & gas solutions, we provide API 6D, ISO, and CE-certified valves engineered for upstream, midstream, and downstream oil & gas operations. This guide outlines the key valve types used in oil & gas pipelines, their applications, technical requirements, and customized solutions to meet the unique challenges of the industry.

Key Valve Requirements for Oil & Gas Pipelines

Oil & gas pipelines operate under strict conditions, requiring valves to meet the following critical requirements:

- High Pressure & Temperature Resistance: Pipelines often operate at high pressures (PN40-PN100+) and high temperatures (up to 450°C for crude oil and natural gas), requiring valves with robust construction and high-pressure/temperature ratings.

- Bubble-Tight Shut-Off: Valves must provide leak-free shut-off to prevent oil and gas leakage, which can cause environmental damage, safety hazards, and financial losses.

- Corrosion Resistance: Oil and gas media often contain corrosive components (e.g., sulfur, CO₂, water), requiring valves made of corrosion-resistant materials (e.g., stainless steel, alloy steel, duplex stainless steel).

- Fire-Safe Design: Valves must be fire-safe (compliant with API 6FA) to prevent leakage in the event of a fire, ensuring safety in critical operations.

- Anti-Static Design: To prevent static electricity buildup, which can ignite flammable oil and gas, valves must have anti-static components that ground static charges.

- Compliance with Industry Standards: Valves must meet API 6D (pipeline valves), API 600 (gate valves), API 608 (ball valves), and ASME B16.34 (pressure-temperature ratings) standards to ensure quality and performance.

Key Valve Types for Oil & Gas Pipelines

Oil & gas pipelines consist of three main stages: upstream (exploration and production), midstream (transmission and storage), and downstream (refining and distribution). Each stage requires specific valve types to meet its unique requirements. Below are the most commonly used valves in each stage.

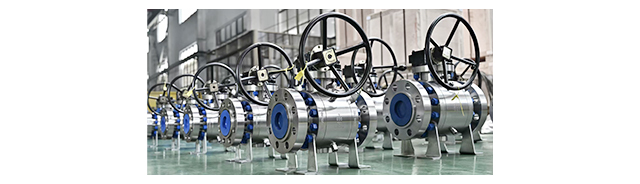

1. Ball Valves: The Most Versatile Valve for Oil & Gas Pipelines

Ball valves are the most widely used valves in oil & gas pipelines, valued for their bubble-tight shut-off, quick operation, and versatility. They are suitable for both isolation and basic flow control, making them ideal for upstream, midstream, and downstream operations.

Key Types & Features:

- Trunnion-Mounted Ball Valves: Ideal for high-pressure, large-diameter pipelines (PN40-PN100+, DN50-DN600+). The ball is supported by upper and lower trunnions, reducing operating torque and ensuring stable performance in high-pressure conditions. They are commonly used in midstream transmission pipelines and upstream production facilities.

- Floating Ball Valves: Suitable for medium-pressure, small-medium diameter pipelines (PN10-PN63, DN15-DN100). The ball floats between the seats, with inlet pressure pushing the ball against the downstream seat to ensure tight shut-off. They are used in downstream refining and distribution pipelines.

- Full-Bore Ball Valves: Provide unobstructed flow, allowing pigging (pipeline cleaning) and minimizing pressure drop—critical for long-distance transmission pipelines.

- Reduced-Bore Ball Valves: Compact, lightweight, and cost-effective, suitable for applications where pigging is not required (e.g., downstream distribution lines).

- Fire-Safe & Anti-Static: All oil & gas ball valves are designed to be fire-safe (API 6FA) and anti-static, preventing leakage and static buildup.

Application Scenarios:

- Upstream: Wellhead control, production manifolds, and separator lines.

- Midstream: Long-distance transmission pipelines, compressor stations, and storage terminals.

- Downstream: Refinery process lines, product distribution pipelines, and loading/unloading terminals.

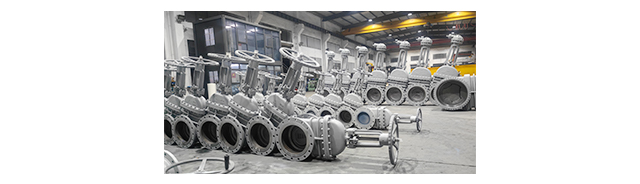

2. Gate Valves: For Full Flow Isolation

Gate Valves: For Full Flow Isolation

Gate valves are used for full flow isolation in oil & gas pipelines, providing a straight-through flow path with minimal pressure drop when fully open—critical for large-volume oil and gas transmission. They operate by lifting a wedge-shaped gate to open or close the pipeline, making them ideal for on/off service rather than flow regulation. Gate valves are valued for their robust construction and ability to handle high pressures and temperatures, making them a staple in oil & gas operations.

Key Types & Features:

- Wedge Gate Valves: The most common type for oil & gas pipelines, available in solid wedge, flexible wedge, and split wedge designs. Solid wedge valves are suitable for high-pressure, high-temperature applications (up to PN100+, 450°C), while flexible and split wedge designs accommodate thermal expansion and prevent jamming in harsh conditions.

- Parallel Gate Valves: Feature two parallel gates that move horizontally to open or close the flow path. They offer excellent shut-off performance and are suitable for low-pressure to medium-pressure pipelines (PN10-PN63), often used in downstream refining and distribution systems.

- Fire-Safe & Corrosion-Resistant: Oil & gas gate valves are designed to be fire-safe with metal-to-metal seating to prevent leakage in the event of a fire. Body materials include carbon steel, alloy steel, and stainless steel to resist corrosion from sulfur, CO₂, and other harsh media.

- Full-Bore Design: Most gate valves for oil & gas pipelines feature a full-bore design, allowing pigging (pipeline cleaning and inspection) and ensuring unobstructed flow of oil and gas, which minimizes pressure drop and energy loss.

Application Scenarios:

- Upstream: Wellhead isolation, production well manifolds, and separator outlets, where reliable shut-off is critical for maintenance and emergency operations.

- Midstream: Long-distance transmission pipeline main shut-off valves, compressor station inlet/outlet valves, and storage tank isolation valves.

- Downstream: Refinery process unit isolation, crude oil and refined product storage tank valves, and distribution pipeline section valves.

3. Check Valves: Essential for Backflow Prevention

Check valves (non-return valves) are critical safety components in oil & gas pipelines, designed to prevent backflow of oil, gas, or condensate. Backflow can damage pumps, compressors, and pipelines, cause equipment failure, and create safety hazards—making check valves indispensable in all stages of oil & gas operations. They operate automatically based on pressure differences, requiring no external power.

Key Types & Features:

- Swing Check Valves: Suitable for large-diameter, high-flow pipelines (DN100-DN600+). The swing disc opens with forward flow and closes under gravity and reverse pressure, providing reliable backflow prevention. They have a simple design, minimal pressure drop, and are resistant to clogging by debris in crude oil or natural gas.

- Lift Check Valves: Ideal for high-pressure, high-temperature pipelines (PN40-PN100+, up to 450°C). The lift disc moves vertically to open and close, offering tight shut-off and resistance to water hammer. They are commonly used in upstream wellhead lines and high-pressure transmission pipelines.

- Dual Plate Check Valves: Compact, lightweight, and fast-closing, suitable for medium-diameter pipelines (DN50-DN300). The dual spring-loaded plates close quickly to prevent backflow and water hammer, making them ideal for compressor stations and pump discharge lines.

- Fire-Safe & Anti-Static: Like other oil & gas valves, check valves are designed to be fire-safe and anti-static, ensuring safety in flammable environments.

Application Scenarios:

- Upstream: Pump and compressor discharge lines, wellhead flow lines, and separator outlets to prevent backflow of crude oil or natural gas.

- Midstream: Transmission pipeline pump stations, compressor stations, and storage terminal inlet/outlet lines.

- Downstream: Refinery process lines, product distribution pipelines, and loading/unloading terminals to prevent backflow of refined products.

4. Globe Valves: For Precise Flow & Pressure Control

Globe valves are used for precise flow and pressure control in oil & gas pipelines, thanks to their linear motion design that allows for throttling and accurate adjustment. Unlike gate valves, they are not ideal for full-flow isolation but excel in applications where precise control is required, such as chemical injection, pressure regulation, and flow metering.

Key Features:

- Precise Throttling: The globe valve’s plug and seat design provides linear flow control, allowing for accurate adjustment of flow rates and pressure—critical for chemical injection systems (e.g., corrosion inhibitors, scavengers) in oil & gas operations.

- Fire-Safe Design: Metal-to-metal seating ensures fire-safe performance (API 6FA), preventing leakage in the event of a fire.

- Corrosion Resistance: Body and trim materials include alloy steel, stainless steel, and duplex stainless steel to resist corrosion from harsh oil & gas media.

- Various Trim Options: Available with different trim designs (e.g., balanced trim, unbalanced trim) to handle high pressure drops and prevent cavitation, which can damage valve internals.

Application Scenarios:

- Upstream: Chemical injection lines, wellhead choke valves, and pressure control lines.

- Midstream: Transmission pipeline pressure regulation, compressor station control lines, and condensate handling systems.

- Downstream: Refinery process control lines, heat exchanger bypass valves, and product quality control lines.

5. Specialized Valves for Oil & Gas Applications

In addition to the above common valves, complex oil & gas operations require specialized valves to meet unique challenges:

- Choke Valves: Used in upstream wellhead operations to control the flow rate and pressure of crude oil and natural gas from the well. They are designed to handle high pressure drops and prevent cavitation, with adjustable trim to accommodate changing well conditions.

- Control Valves: Automated valves used for precise flow, pressure, and temperature control in midstream and downstream operations. They are equipped with actuators (electric, pneumatic, or hydraulic) and positioners to maintain setpoint control, ensuring optimal system performance.

- Emergency Shutdown (ESD) Valves: Critical safety valves designed to quickly shut off flow in the event of an emergency (e.g., pipeline rupture, fire, or equipment failure). They are automated and can be triggered manually or by the system’s safety control system, ensuring rapid isolation to prevent accidents.

- Pigging Valves: Used in long-distance transmission pipelines to launch and receive pigs (devices used for cleaning, inspection, and maintenance). They are designed to allow pigs to pass through while maintaining tight shut-off when not in use.

Material Selection for Oil & Gas Valves

Material selection is critical for oil & gas valves, as they must withstand high pressure, high temperature, and corrosive media. The choice of materials depends on the application’s operating conditions and media characteristics:

1. Body Materials

- Carbon Steel (A105, A216 WCB): Cost-effective and suitable for low to medium-pressure, low-corrosion applications (e.g., downstream refined product pipelines, low-sulfur crude oil). Carbon steel can be coated with epoxy or zinc to improve corrosion resistance.

- Alloy Steel (A182 F11, F22, F91): High-pressure, high-temperature resistance, suitable for upstream and midstream applications (e.g., wellhead valves, high-temperature transmission pipelines). Alloy steel is resistant to creep and oxidation at high temperatures (up to 450°C).

- Stainless Steel (304, 316, 316L): Corrosion-resistant, suitable for corrosive media (e.g., natural gas with high CO₂ or sulfur content, offshore pipelines). Stainless steel 316L is more corrosion-resistant than 304, making it ideal for harsh offshore and chemical environments.

- Duplex Stainless Steel (2205, 2507): Combines corrosion resistance and high strength, suitable for highly corrosive and high-pressure applications (e.g., offshore oil & gas pipelines, acid gas handling).

2. Trim Materials

The trim (plug, seat, stem) is the most wear-prone and corrosion-prone component of oil & gas valves, so it must be made of high-performance materials:

- Stellite Alloys: Extremely wear-resistant and corrosion-resistant, suitable for high-pressure, high-temperature applications (e.g., choke valves, control valves) where erosion and cavitation are a concern.

- Stainless Steel (316, 316L): Used for trim in corrosive environments, providing good corrosion resistance and durability.

- Ceramic: High wear resistance and corrosion resistance, suitable for valves handling abrasive media (e.g., crude oil with sand particles).

- PTFE: Used for soft seating in low-pressure, low-temperature applications (e.g., floating ball valves in downstream distribution lines), providing bubble-tight shut-off.

Key Selection Criteria for Oil & Gas Valves

Selecting the right valve for oil & gas pipelines requires careful consideration of the following factors to ensure safety, reliability, and optimal performance:

1. Operating Conditions:

Pressure: Match the valve’s pressure rating (PN40-PN100+) to the pipeline’s operating pressure. High-pressure applications require trunnion-mounted ball valves, wedge gate valves, or alloy steel valves.

2. Temperature: Choose valves with materials and trim suitable for the operating temperature (up to 450°C for crude oil and natural gas). High-temperature applications require alloy steel or stainless steel valves.

3. Flow Rate: For large flow rates, select full-bore valves (gate valves, full-bore ball valves) to minimize pressure drop. For precise flow control, choose globe valves or control valves.

4. Media Characteristics:

Corrosiveness: Corrosive media (e.g., high-sulfur crude oil, acid gas) require stainless steel or duplex stainless steel valves with corrosion-resistant trim.

5. Abrasiveness: Media with solid particles (e.g., crude oil with sand) require wear-resistant trim (e.g., Stellite, ceramic) to prevent erosion.

6. Flammability: All valves must be fire-safe (API 6FA) and anti-static to prevent ignition and leakage in flammable environments.

7. Application Stage:

Upstream: Prioritize valves with high pressure/temperature resistance, corrosion resistance, and reliability (e.g., trunnion-mounted ball valves, wedge gate valves, choke valves).

8. Midstream: Focus on full-bore valves for pigging, reliable isolation, and pressure control (e.g., full-bore ball valves, gate valves, check valves).

9. Downstream: Choose valves for precise control and bubble-tight shut-off (e.g., floating ball valves, globe valves, control valves).Oil & gas pipelines operate under the most demanding conditions, requiring valves that are reliable, durable, and compliant with strict industry standards. Ball valves, gate valves, check valves, and globe valves are the most commonly used types, each tailored for specific applications in upstream, midstream, and downstream operations. Specialized valves such as choke valves, control valves, and ESD valves address unique challenges, ensuring safety and efficiency.

Material selection is a key factor in valve performance, with carbon steel, alloy steel, stainless steel, and duplex stainless steel being the most common materials for oil & gas applications. By following the selection criteria and best practices outlined in this guide, you can choose valves that meet the specific needs of your oil & gas project, minimizing downtime and ensuring safe, reliable operation.

Our API 6D, ISO, and CE-certified valves are engineered specifically for oil & gas pipelines, with fire-safe, anti-static, and corrosion-resistant designs. We offer customized solutions to meet the unique challenges of upstream, midstream, and downstream operations, from wellhead control to long-distance transmission and refining.

For technical specifications, pricing, or custom valve solutions for your oil & gas pipeline project, contact Eileen via WhatsApp:
