Rising Stem vs. Non-Rising Stem Gate Valve

Among the many types of gate valves, the two most widely used are:

Rising Stem Gate Valve

Non-Rising Stem Gate Valve

Understanding the differences between these two types is essential for engineers, contractors, and project owners to ensure the correct valve selection for their applications. In this article, we provide a detailed comparison of both, including features, advantages, and suitable applications.

What is a Gate Valve?

A gate valve is a linear-motion valve used to control the flow of liquids. It works by raising or lowering a gate (wedge) inside the valve body, allowing or blocking fluid passage.

It is mainly designed for on/off control, not for throttling.

Gate valves are known for their low flow resistance when fully open, providing smooth flow with minimal pressure loss.

They are widely used in pipelines carrying water, oil, gas, and other non-viscous fluids.

Related Product:

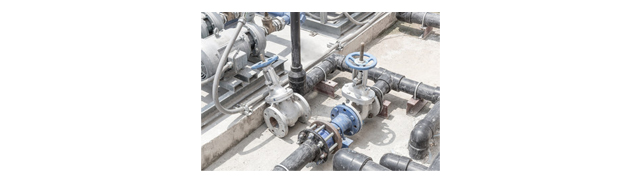

What is a Rising Stem Gate Valve?

A Rising Stem Gate Valve is designed so that the stem (valve rod) moves upward when the valve opens and goes downward when it closes. The movement of the stem is visible from outside the valve.

Features & Advantages

Visual Position Indication: The valve’s open or closed position is easily seen, making operation simple.

Easy Maintenance: Because the stem is exposed, it is easier to lubricate and maintain.

Durability: Less prone to internal thread wear, ensuring long service life.

High Reliability: Often used in critical applications requiring clear valve status.

Suitable Applications

Water treatment plants – where operators need to clearly see valve status.

Firefighting systems – quick visual inspection is required.

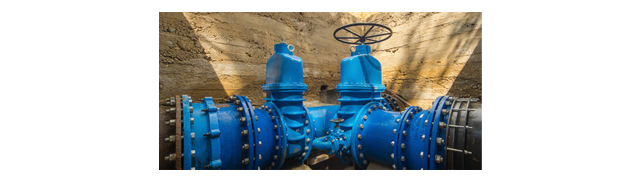

Underground pipelines with valve chambers – space allows the stem to extend upward.

Power plants, chemical plants – where high reliability and frequent operation are needed.

What is a Non-Rising Stem Gate Valve?

A Non-Rising Stem Gate Valve is designed so that the stem does not move up or down externally. The stem rotates in place, and the gate inside the valve moves vertically. The valve position (open/closed) cannot be directly observed from outside.

Features & Advantages

Space-Saving Design: The stem does not rise, making it suitable for limited installation spaces.

Cost-Effective: Generally cheaper than rising stem types.

Enclosed Stem Protection: The stem threads are inside the valve, reducing exposure to environmental corrosion.

Compact Structure: Lighter weight and easier to install in tight pipeline networks.

Suitable Applications

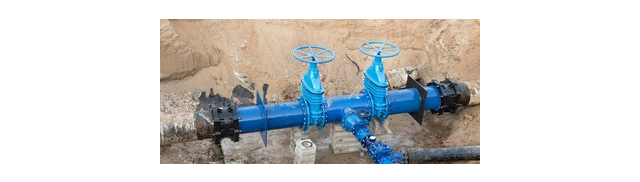

Underground pipelines without chambers – saves space.

Urban water supply networks – compact design makes installation easier.

Industrial projects with limited room – where rising stem valves cannot fit.

Irrigation and agricultural pipelines – cost-effective choice for large networks.

Rising Stem vs. Non-Rising Stem Gate Valve: Key Differences

How to Choose Between Rising and Non-Rising Stem Gate Valves?

When selecting between the two types, consider the following factors:

Space availability

If there is enough installation space → choose Rising Stem Gate Valve.

If space is limited → choose Non-Rising Stem Gate Valve.

Maintenance requirements

For projects needing easy inspection and lubrication → choose Rising Stem.

For buried pipelines with no regular inspection → Non-Rising Stem is more practical.

Budget

Rising stem valves are generally more expensive but more durable.

Non-rising stem valves are economical and widely used in municipal projects.

Project type

Critical projects (power, firefighting) → Rising stem for reliability.

Municipal water supply, agriculture, irrigation → Non-rising stem for cost efficiency.

Both Rising Stem Gate Valves and Non-Rising Stem Gate Valves play essential roles in modern piping systems. The choice depends on installation space, maintenance needs, budget, and project requirements.

As a professional manufacturer, WEIZIDOM offers a full range of gate valves, including rising stem and non-rising stem types, as well as butterfly valves, ball valves, check valves, globe valves, pipe fittings, water meters, and flow meters.

Common Questions About Rising vs. Non-Rising Stem Gate Valves

1. Which is better: rising stem or non-rising stem gate valve?

Answer: It depends on the application. Rising stem gate valves are better for projects requiring clear visual inspection and easier maintenance. Non-rising stem valves are better for underground or space-limited projects.

2. How can I tell if a gate valve is open or closed?

Answer: In a rising stem gate valve, the position of the stem clearly shows whether the valve is open or closed. In a non-rising stem valve, external indicators or position sensors may be required.

3. Can non-rising stem gate valves be used in fire systems?

Answer: Normally, rising stem gate valves are preferred in firefighting systems because visual confirmation of valve position is crucial. Non-rising types are less common in such applications.

4. Which type lasts longer in service life?

Answer: Rising stem gate valves generally last longer, as their threads are less exposed to the working medium, reducing wear and corrosion.

5. Are non-rising stem gate valves cheaper than rising stem?

Answer: Yes, non-rising stem valves are more economical, making them the preferred choice in municipal water and agricultural projects.

6. How do I select the right type for my project?

Answer: Consider installation space, budget, maintenance needs, and project importance. If you need help, WEIZIDOM engineers can provide tailored solutions.
