Why are brass gate valves irreplaceable in HVAC systems

2026-06-22

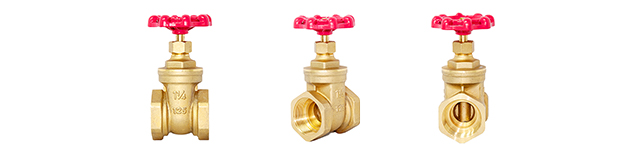

What is a Brass Gate Valve?

A Brass Gate Valve is a compact, general-purpose isolation valve manufactured from high-quality brass (copper-zinc alloy) , designed for small-diameter piping systems in HVAC, plumbing, and industrial applications. The gate valve operates by raising or lowering a wedge-shaped gate (disc) perpendicular to the flow direction — when fully open, the gate retracts completely into the bonnet, creating a full bore (full pipe diameter) opening with virtually no flow resistance.

The operating principle is simple and reliable:

A wedge-shaped gate is positioned between two seating surfaces

When the valve is open, the gate is raised completely out of the flow path, allowing unrestricted flow

When the valve is closed, the gate is lowered between the seats, providing a tight seal against fluid flow

A handwheel and threaded stem provide mechanical advantage for smooth operation

Key characteristics of Brass Gate Valves:

Compact, lightweight design – Ideal for tight spaces and branch lines

Full bore flow path – No pressure drop when fully open

Excellent corrosion resistance – Brass resists rust and scaling in water and steam service

Threaded ends (NPT/BSP) – Easy installation without welding or flanges

Durable, low-maintenance construction – Proven reliability for decades

Cost-effective – Excellent value for general service applications

At WEIZIDOM, our Brass Gate Valves are manufactured to ISO228 design standards with strict quality control (12 tests from raw material to final product), ensuring reliable, long-lasting performance for air, steam, water, solvents, and other general service media.

Main Function in HVAC Systems

In HVAC (Heating, Ventilation, and Air Conditioning) systems, the Brass Gate Valve serves as a reliable, compact isolation device for branch lines, equipment connections, and maintenance points.

Its primary functions include:

Function	Description
Chilled Water Line Isolation	Isolates individual fan coil units, air handling units (AHUs), or chilled water branches for maintenance, repair, or replacement without draining the entire system.
Hot Water Heating Line Isolation	Shuts off flow to radiators, baseboard heaters, or hot water coils — enables service or replacement of terminal units while the rest of the system remains operational.
Condenser Water Line Isolation	Isolates condenser water branches serving chillers, cooling towers, or heat exchangers — provides local shut-off for equipment service.
Steam Line Isolation (Low Pressure)	Shuts off low-pressure steam supply to humidifiers, steam coils, or unit heaters — brass construction withstands steam temperatures up to 180°C (depending on pressure).
Compressed Air Line Isolation	Isolates pneumatic control lines, air tools, or instrument air branches — full bore design minimizes pressure drop in air systems.
Solvent & Water Treatment Chemical Isolation	Handles water treatment chemicals, glycol solutions, and mild solvents — brass resists corrosion from common HVAC water additives.

Typical applications within air, steam, water, and solvents include:

Application Field	Specific Use
Chilled Water Systems	Branch isolation for fan coil units, AHUs, chilled beams
Hot Water Heating	Radiator isolation, baseboard heater shut-off, boiler bypass
Condenser Water	Cooling tower isolation, chiller condenser branch shut-off
Low-Pressure Steam	Unit heater isolation, humidifier steam supply, steam coil shut-off
Compressed Air	Tool drop isolation, instrument air branch shut-off
Water Treatment	Chemical feed line isolation, sample point shut-off
Glycol Systems	Anti-freeze circulation line isolation in hydronic systems

Key Features & Advantages

WEIZIDOM’s Brass Gate Valve is engineered specifically for HVAC and general service applications handling air, steam, water, and solvents.

Below are its outstanding features and advantages:

Feature	Advantage
ISO228 Compliance	Manufactured to international thread standard for pipe threads — ensures compatibility with standard BSP or BSPT threaded pipe fittings worldwide.
Compact Diameter Range (DN15–DN50 / ½"–2")	Covers all common HVAC branch line sizes — from small fan coil unit connections (DN15) to main branch lines for AHUs and equipment isolation (DN50).
Pressure Rating 0–1.6MPa (0–232 psi)	Suitable for typical HVAC system pressures — chilled water (0.6–1.0 MPa), hot water (0.4–1.0 MPa), low-pressure steam (up to 1.6 MPa / 6 bar), and compressed air (0.6–1.0 MPa).
Full Bore / Full Port Design	The gate retracts completely into the bonnet when open — creates a smooth, full-diameter flow path with no obstructions. Zero pressure drop, no flow restriction, and no turbulence — maximizes system efficiency.
Brass Construction — Corrosion Resistant	High-quality brass (copper-zinc alloy) provides excellent resistance to rust, scaling, and dezincification in water, steam, and air service — longer service life than iron or steel valves in wet environments. Ideal for HVAC applications with water treatment chemicals.
Threaded Ends for Easy Installation	Female threaded ends (BSP or NPT) allow direct connection to standard threaded pipe — no welding, no flanges, no special tools. Quick installation, easy replacement, and lower labor costs.

Additional advantages that support WEIZIDOM's overall value proposition:

Rising Stem Design – The stem rises as the valve opens, providing clear visual confirmation of valve position — essential for HVAC maintenance and safety.

Non-rising Stem Option Available – For tight installations where vertical clearance is limited.

Durable, Long-Lasting Operation – Brass wedge and seats resist wear and corrosion — reliable operation over many cycles.

Leak-Tight Shut-Off – Precision-machined seating surfaces provide positive seal — prevents leakage in critical isolation applications.

Low Operating Torque – Optimized wedge design reduces handwheel effort — easy operation even after long periods of inactivity.

Chemical Compatibility – Brass resists common HVAC fluids: water, hot water, chilled water with glycol, low-pressure steam, compressed air, and mild solvents.

Temperature Range – Suitable for typical HVAC temperatures: chilled water (4–15°C), hot water (50–90°C), low-pressure steam (up to 180°C depending on pressure).

Compact, Lightweight – Easily handled and installed by one person — reduces installation time and labor cost.

Rigorous Quality Control – Each valve undergoes 12 tests from raw material to final product, including material verification, dimensional inspection, hydrostatic shell test, seat leakage test, and operation test.

Material Specifications

Component	Material	Key Characteristics
Body	Brass (Cu-Zn alloy)	Corrosion-resistant, dezincification-resistant, excellent machinability
Bonnet	Brass (Cu-Zn alloy)	Corrosion-resistant, matches body for thermal expansion
Gate (Wedge)	Brass or Brass with PTFE coating	Smooth operation, tight sealing, corrosion-resistant
Stem	Brass or Stainless Steel	Corrosion-resistant, strong, smooth operation
Seats	Integral brass or PTFE	Precision-machined for leak-tight seal
Handwheel	Cast iron, brass, or steel	Durable, easy grip
Packing	PTFE or Graphite	Low friction, leak-tight stem seal
End Connections	Threaded (BSP / NPT)	Standard taper threads for leak-tight joints

Why Choose WEIZIDOM’s Brass Gate Valve for Your HVAC System?

Reason	Benefit
Designed for HVAC & General Service	Compact size, threaded ends, and brass construction are ideal for chilled water, hot water, steam, and compressed air systems.
ISO228 Compliant	Manufactured to international thread standard — ensures compatibility with standard BSP/BSPT threaded pipe fittings worldwide.
Full Bore — No Pressure Drop	Gate retracts completely when open — zero flow restriction, maximizes system efficiency.
Corrosion-Resistant Brass	Resists rust and scaling in wet HVAC environments — longer service life than iron or steel valves.
Easy Installation	Threaded ends — no welding, no flanges, no special tools. Quick, low-cost installation.
Cost-Effective	Excellent price-to-performance ratio for high-volume HVAC applications — reliable service at an affordable price.
5 Domestic Factories	Located in Tianjin, Wenzhou, Hebei, Lianyungang, and Shandong, ensuring consistent quality, competitive pricing, and fast delivery.
108+ Export Destinations	Proven reliability in countries including Mexico, Colombia, Chile, Pakistan, Saudi Arabia, UAE, South Africa, Egypt, and more.

Technical Specifications

Parameter	Specification
Design Standard	ISO228 (Pipe Threads for General Purpose)
Diameter Range (DN)	DN15 – DN50 (NPS ½" – 2")
Pressure Range	0 – 1.6 MPa (0 – 232 psi)
Medium	Air, Steam, Water, Solvents, Glycol solutions, Mild chemicals
Body Material	Brass (Cu-Zn alloy) — dezincification-resistant
Bonnet Material	Brass (Cu-Zn alloy)
Gate (Wedge) Material	Brass or Brass with PTFE coating
Stem Material	Brass or Stainless Steel
Seat Material	Integral brass (precision-machined) or PTFE
Packing Material	PTFE or Graphite
Handwheel Material	Cast iron, brass, or steel — as specified
End Connections	Female threaded — BSP (ISO228) or NPT (ASME B1.20.1) — as specified
Stem Type	Rising stem (standard) — visual position indicator; Non-rising stem available
Operation	Handwheel (manual)
Testing Standards	ISO 5208 / EN 12266
Hydrostatic Shell Test Pressure	1.5 × rated pressure (2.4 MPa)
Hydrostatic Seat Test Pressure	1.1 × rated pressure (1.76 MPa)
Temperature Range (Water/Glycol)	-10°C to +120°C
Temperature Range (Steam)	0°C to +180°C (at reduced pressure)
Applicable Media	Chilled water, hot water, low-pressure steam, compressed air, water-glycol solutions, mild solvents, water treatment chemicals
Body Finish	Natural brass (uncoated) or nickel-plated — as specified

Customized options (NPT threads, non-rising stem, nickel-plated finish, special handwheel, stainless steel stem) available upon request.

Installation Notes for HVAC Systems

To ensure proper operation of the Brass Gate Valve:

Installation Guideline	Reason
Use appropriate thread sealant (PTFE tape or pipe joint compound) on male threads	Prevents leakage at threaded connections.
Do not over-tighten — hand-tight plus 1–2 turns with wrench is sufficient	Over-tightening can crack the brass body or damage threads.
Install with adequate clearance for handwheel operation (rising stem)	Allow space for stem to rise when opening — check vertical clearance.
Install in horizontal pipe with stem vertical (preferred orientation)	Ensures proper gate alignment and smooth operation.
Install in fully open position to prevent debris from lodging in the wedge during assembly	Debris trapped between seat and gate can prevent full closure.
For steam service, ensure proper condensate drainage and warm-up	Liquid condensate in steam lines can cause water hammer — drain before operation.
For glycol systems, verify compatibility with brass	Standard brass is suitable for most glycol-water mixtures (ethylene glycol, propylene glycol).
Install isolation valves upstream and downstream of critical equipment	Allows valve replacement without draining the entire HVAC system.

Typical HVAC Applications — Sizing Guide

Application	Valve Size	Typical Media	Pressure	Function
Fan Coil Unit Isolation	DN15–DN20 (½"–¾")	Chilled/Hot water	0.4–1.0 MPa	Branch isolation
Radiator Isolation	DN15–DN25 (½"–1")	Hot water	0.4–1.0 MPa	Unit shut-off
AHU Coil Isolation	DN25–DN50 (1"–2")	Chilled/Hot water	0.6–1.2 MPa	Equipment isolation
Low-Pressure Steam Unit Heater	DN20–DN40 (¾"–1½")	Steam	0.1–0.4 MPa (1–4 bar)	Steam supply shut-off
Compressed Air Drop	DN15–DN25 (½"–1")	Compressed air	0.6–1.0 MPa	Tool/equipment isolation
Chemical Feed Line	DN15–DN20 (½"–¾")	Water treatment chemicals	0.2–0.6 MPa	Dosing line shut-off

Brass vs. Other Materials for HVAC Service

Consideration	Brass Gate Valve	Iron/Steel Gate Valve	Bronze Gate Valve
Corrosion resistance (water)	Excellent	Poor (rusts)	Excellent
Weight	Light	Heavy	Medium
Cost	Low-medium	Low	Medium-high
Threaded end strength	Good	Very good	Good
Dezincification risk	Low (with quality brass)	N/A	N/A
Best for	HVAC branch lines, low- and medium-pressure service	Large mains, high pressure	Marine, high-corrosion applications

For HVAC applications, brass offers the optimal balance of corrosion resistance, cost, and ease of installation.
