Common valve structure principles

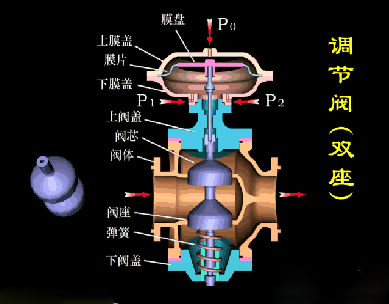

调节阀（双座） Regulating valve (double seat)

上膜盖 Upper film cover

膜片 Diaphragm

下膜片 Lower diaphragm

上阀盖 Upper valve cover

阀芯 Valve core

阀体 Valve body

阀座 Valve seat

弹簧 Spring

下阀盖 Lower valve cover

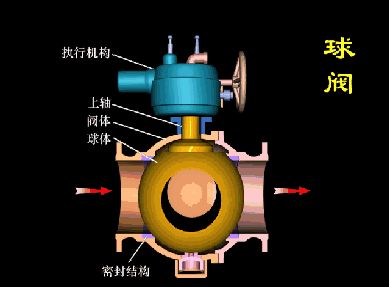

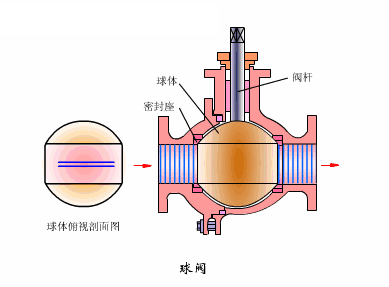

球阀 Ball valve

球体俯视剖面图 Top view of sphere

球体 Sphere

密封座 Sealing seat

阀杆 Stem

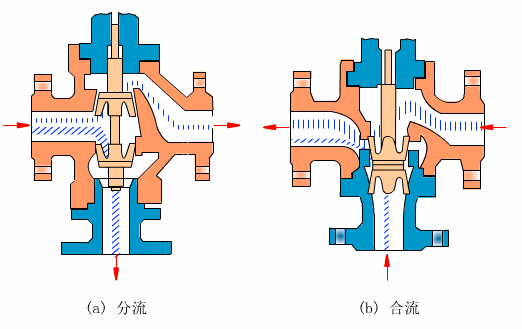

三通阀 Three-way valve

分流 Divergence

合流 Convergence

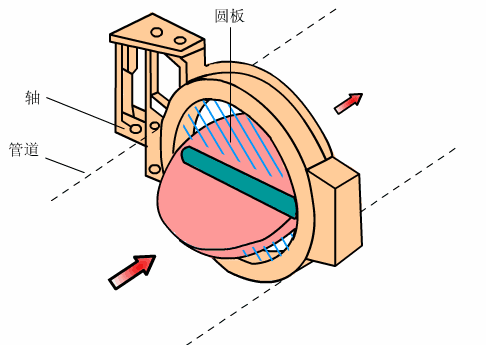

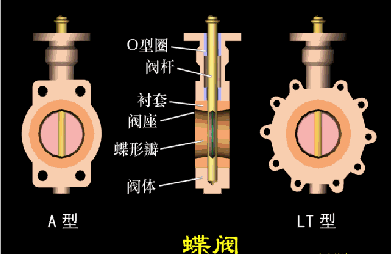

蝶阀 Butterfly valve

管道 Pipe

轴 Axis

圆板 Circular plate

A型 Type A

O型圈 O-ring

阀杆 Stem

衬套 Bushing

阀座 Valve seat

蝶形瓣 Butterfly valve

阀体 Valve body

LT型 LT type

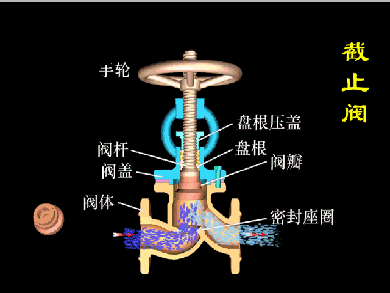

截止阀 Globe valve（Shut-off valve）

手轮 Handwheel

阀杆 Stem

阀盖 Cap

阀杆 Stem

盘根压盖 Packing gland

盘根 Packing roots

阀瓣 Disc

密封座圈 Sealing ring

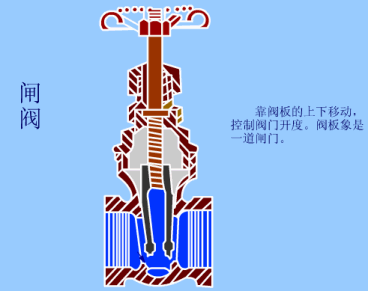

闸阀 Gate valve

靠阀板的上下移动，控制阀门开度。阀板像是一道闸门。

The valve opening is controlled by the up and down movement of the valve plate. The valve plate is like a gate.

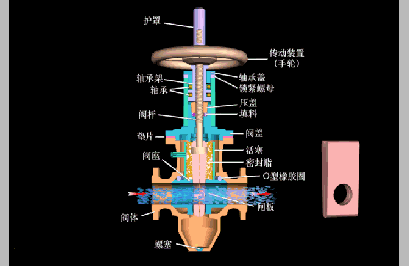

手动平板闸阀 Manual flat gate valve

护罩 Shield

轴承架 Bearing frame

轴承 Bearing

阀杆 Stem

垫片 Gasket

阀座 Valve seat

阀体 Valve body

传动装置（手轮）Transmission device (hand wheel)

轴承盖 Bearing cap

螺母 Nut

压盖 Gland

填料 Filler

阀盖 Cap

活塞 Piston

密封脂 Sealant

O型橡胶圈 O-shaped rubber ring

闸板 Gate

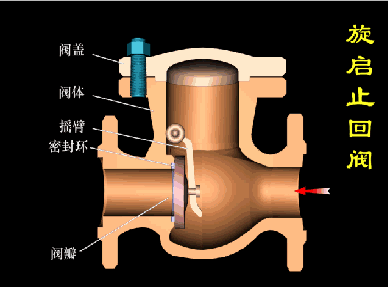

旋启止回阀 Swing check valve

阀盖 Cap

阀体 Valve body

摇臂 Rocker arm

密封环 Sealing ring

阀瓣 Disc

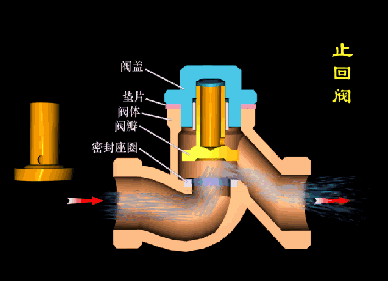

止回阀 Check valve

阀盖 Cap

垫片 Cap

阀体 Valve body

阀瓣 Disc

密封座圈 Sealing ring

反向截止 Reverse cutoff

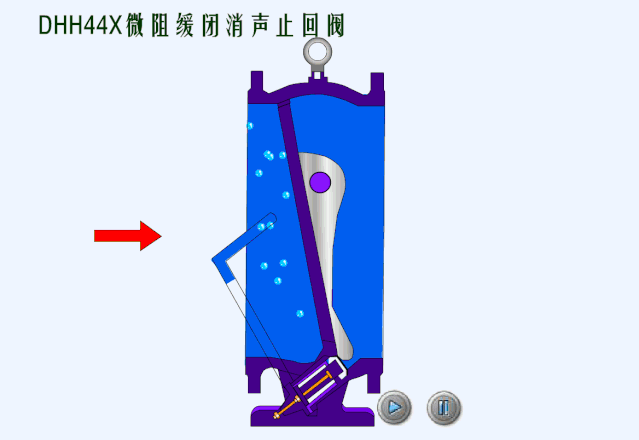

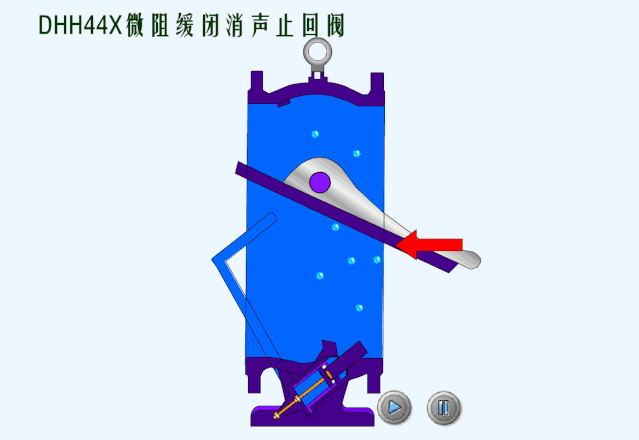

DHH44X微阻缓闭消声止回阀

DHH44X micro-resistance slow-closing silencer check valve

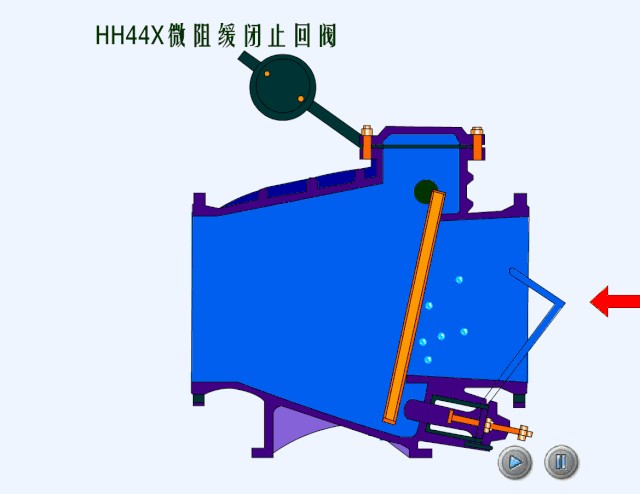

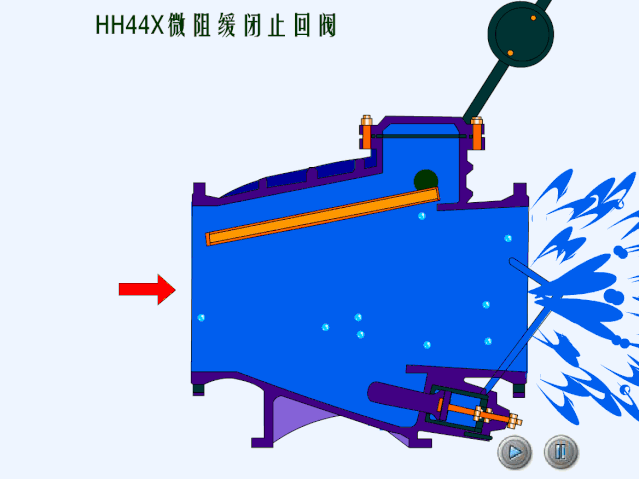

HH44X微阻缓闭止回阀

HH44X micro-resistance slow-closing check valve

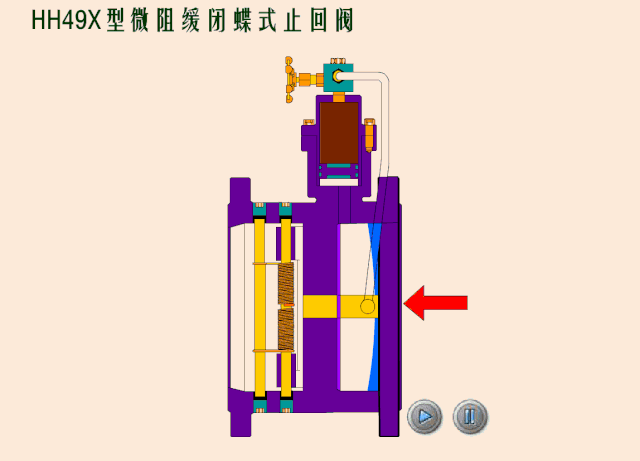

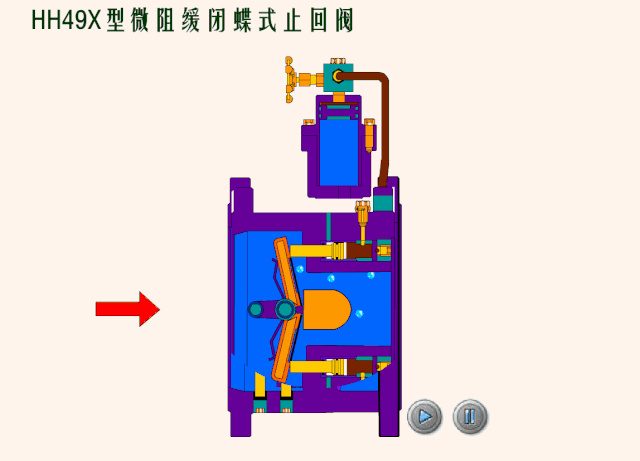

HH49X型微阻缓闭蝶式止回阀

HH49X micro-resistance slow-closing butterfly check valve

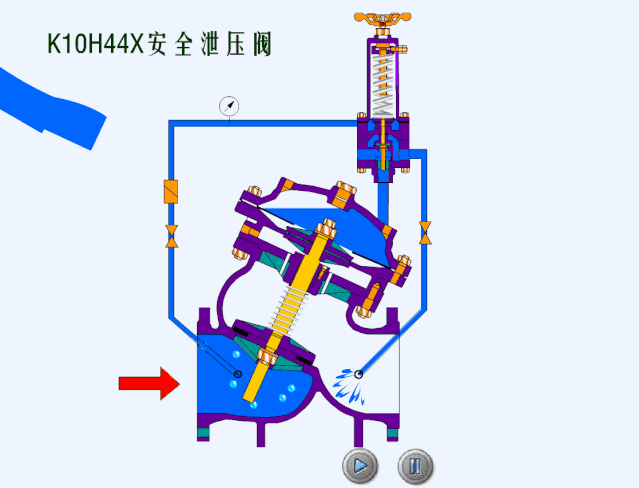

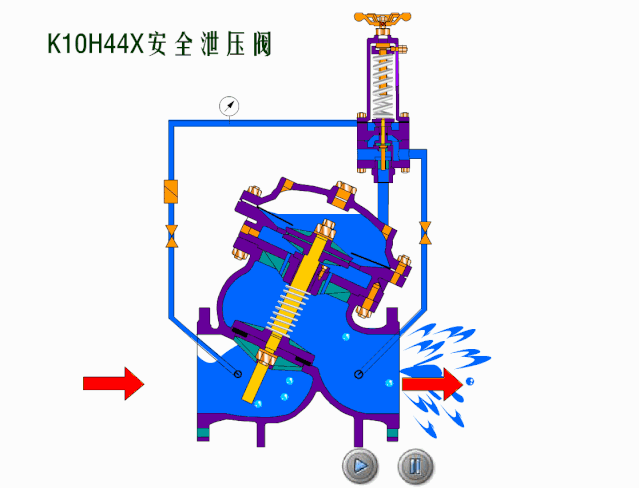

K10H44X安全泄压阀

K10H44X safety relief valve

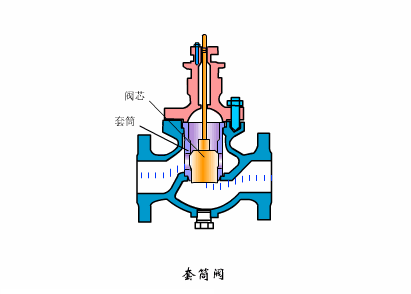

套筒阀 Sleeve valve

阀芯 Valve core

套筒 Sleeve

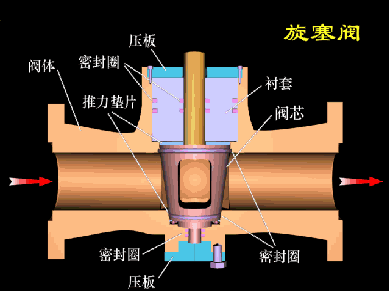

旋塞阀 Plug valve

压板 Pressure plate

密封圈 Sealing ring

推力垫片 Thrust washer

阀体 Valve body

衬套 Bushing

阀芯 Valve core

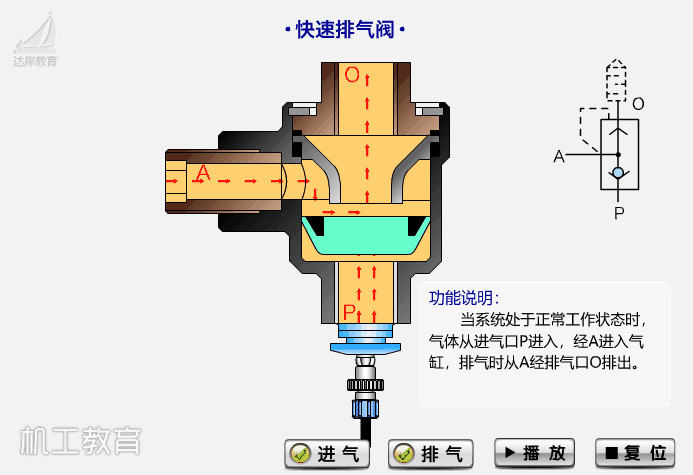

快速排气阀 Quick exhaust valve

功能说明：

当系统处于正常工作状态时，气体从进气口P进入，经A进入气缸，排气时从A经排气口O排出。

Function Description:

When the system is in normal working condition, gas enters from the air inlet P, enters the cylinder through A, and is discharged from A through the exhaust port O during exhaust.

当系统需要排气时,进气口O处的压力下降或者撤销。密封圈在系统的压力作用下向下移动,排气口打开O打开，系统实现快速排气。

When the system needs to be exhausted, the pressure at the air inlet O drops or is removed. The sealing ring moves downward under the pressure of the system, the exhaust port opens O, and the system realizes rapid exhaust.

进气 Air intake

排气 Exhaust

播放 Play

复位 Reset

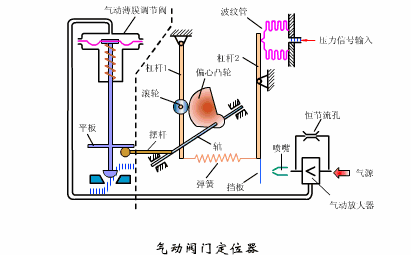

气动阀门定位器 Pneumatic valve positioner

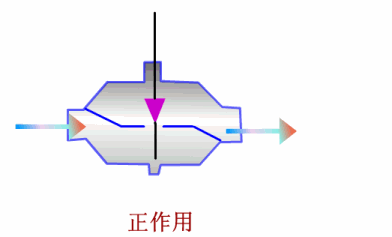

控制阀正作用 Control valve positive

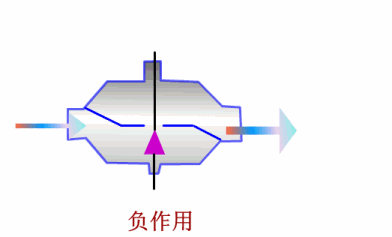

控制阀负作用 Control valve negative effect
