LXDG-15~25 Single-jet, vane wheel, dry-dial water meter

2017-06-21

LXDG-15~25

Single-jet, vane wheel, dry-dial water meter

Application:

--Measuring the volume of cold potable water passing through the pipeline.

Feature:

--Single-jet, dry-dial, free rotating register, small in size and light in weight,

--Magnetic drive, Resistance to exterior magnet interference,

--Keep the reading clear in a long term service.

Note:

--Measuring accuracy conform to ISO 4064 class B standard.

Working condition:

--Water temperature: 0.1℃～30℃

--Water pressure : ≤1.0Mpa

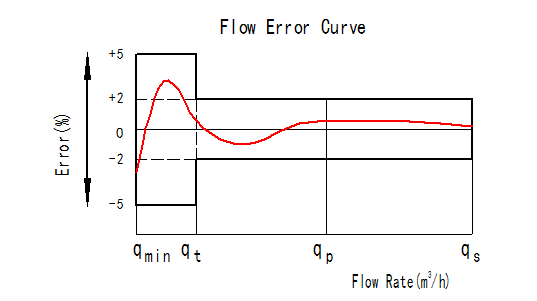

Maximum Permissible Error:

(1) in the lower zone from q_min inclusive up to but excluding q_t is ±5%.

(2) in the upper zone from q_t inclusive up to and including q_s is ±2%.

MAIN TECHNICAL SPECIFICATIONS

Type	Size (mm)	R= Q3/Q1	Q4	Q3	Q2	Q1	Minimum Reading	Maximum Reading
Type	Size (mm)	R= Q3/Q1	L/h		L/h		m³
LXDG-15	15	100	3125	2500	40	25	0.00005	99,999
LXDG-20	20	100	5000	4000	64	40	0.00005	99,999
LXDG-25	25	100	7875	6300	100.8	63	0.00005	99,999

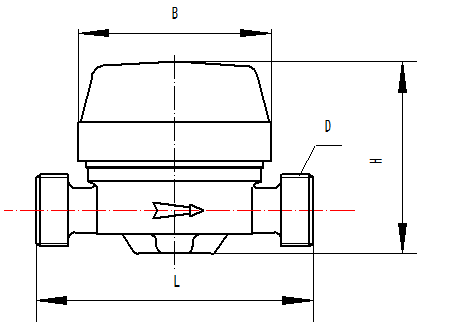

DIMENSIONS

Type	Size	L Length	B Width	H Height	D Connecting Thread
Type	mm				D Connecting Thread
LXDG-15M	15	110	80	86	G3/4B
LXDG-20M	20	130	80	86	G1B
LXDG-25M	25	130	80	86	G11/4B

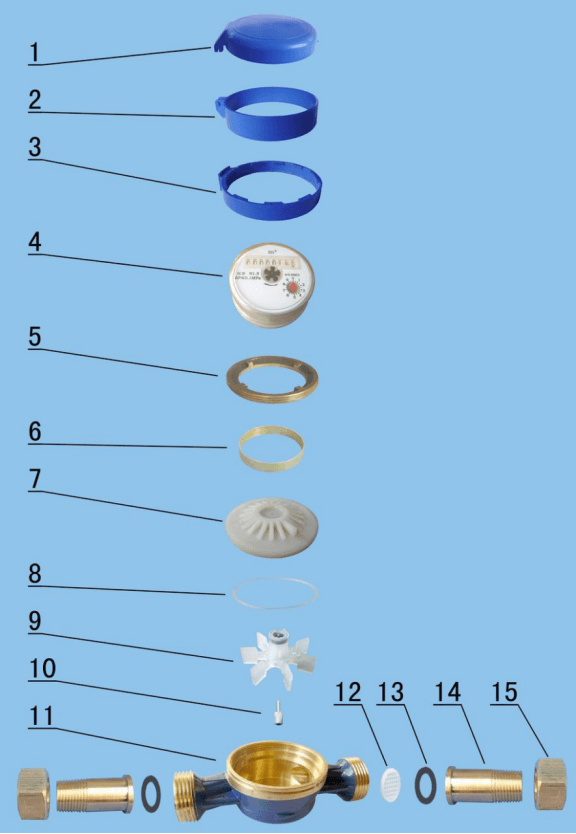

LXDG-15M～20M SINGLE-JET, VANE WHEEL, DRY-DIAL WATER METER
Code	Description	Material	QTY
1	Lid	PP	1
2	Mantle	ABS	1
3	Retaining Ring	ABS	1
4	Sealed Register	Assembly	1
5	Fixing Ring	Brass	1
6	Magnetic Shield Ring	Iron	1
7	Separating Plate	PPO	1
8	O-ring	Silicon Rubber	1
9	Complete Turbine	Assembly	1
10	Counter Pivot	Component	1
11	Body	Brass	1
12	Inlet Strainer	POM	1
13	Coupling gasket	Rubber	2
14	Coupling Tail Piece	Brass	2
15	Coupling Nut	Brass	2
