Metal Seated vs Resilient Seated Gate Valves: Which One Is Right for Your Water System

This article will walk you through a detailed comparison of metal seated vs resilient seated gate valves, highlighting their key differences, advantages, disadvantages, and common applications. By the end, you’ll have a clear guide to determine which one is right for your project.

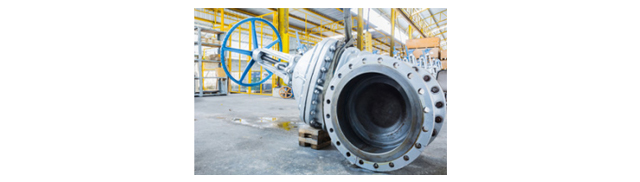

What is a Metal Seated Gate Valve?

A metal seated gate valve uses metal-to-metal contact between the gate and the seat to stop or allow flow. This is the traditional design of gate valves and has been widely used for decades.

Key Features

* Durable sealing under harsh conditions

* High pressure and high temperature resistance

* Reliable performance in demanding environments

* Long service life with proper maintenance

Applications of Metal Seated Gate Valves

Power plants: Suitable for high-pressure steam lines

Oil & gas pipelines: Handles extreme conditions

Mining and slurry transport: Withstands abrasive media

Industrial processing: For chemicals, high-temp fluids

Metal seated valves are best when durability under extreme operating conditions is more important than zero leakage.

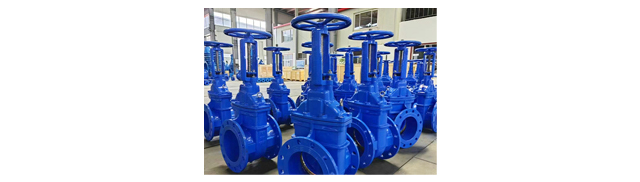

What is a Resilient Seated Gate Valve?

A resilient seated gate valve (also called a soft seated gate valve) uses a rubber or elastomer-coated gate that presses against the seat to achieve a bubble-tight seal.

Key Features

* Zero leakage performance, ideal for water systems

* Corrosion-resistant thanks to rubber or EPDM sealing

* Lightweight and easy to install compared to metal seated valves

* Low operating torque, easier to open and close

Applications of Resilient Seated Gate Valves

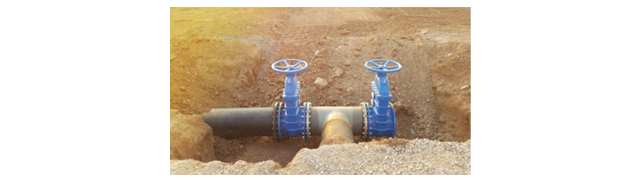

Municipal water supply: Provides safe, leak-free water distribution

Wastewater treatment: Prevents backflow and contamination

Irrigation systems: Easy operation in agricultural networks

Fire protection systems: Ensures reliable sealing during emergencies

Resilient seated valves are the preferred choice for clean water applications, where hygiene and leak prevention are critical.

Key Differences: Metal Seated vs Resilient Seated Gate Valves

Advantages of Metal Seated Gate Valves

* Suitable for extreme environments

* Can operate at high pressure and temperature

* Long-lasting with proper care

* Strong and rigid mechanical design

Advantages of Resilient Seated Gate Valves

* Bubble-tight sealing for clean water systems

* Lightweight and easy installation

* Cost-effective for municipal and irrigation projects

* Lower operating torque and maintenance costs

Cost Considerations

When selecting between metal seated and resilient seated gate valves, cost should be evaluated in terms of total lifecycle:

Metal Seated Valves: Higher initial price and more maintenance, but better for industries where durability under stress is vital.

Resilient Seated Valves: Lower purchase cost and easier maintenance, but not recommended for extreme temperatures or abrasive fluids.

Ultimately, choosing the wrong type may cost more in downtime, repairs, and replacements.

How to Choose the Right Gate Valve for Your Water System

1. Identify Your Medium

Clean drinking water, wastewater, irrigation → Resilient seated gate valve

Steam, oil, gas, slurry, chemicals → Metal seated gate valve

2. Pressure and Temperature Levels

High-pressure pipelines and extreme heat → Metal seated

Low to medium pressure water systems → Resilient seated

3. Leakage Tolerance

Zero leakage required → Resilient seated

Small leakage acceptable in extreme environments → Metal seated

4. Budget and Maintenance

Long-term heavy-duty project → Metal seated

Short to medium-term municipal project → Resilient seated

Industry Examples

Municipal Water Networks: Resilient seated gate valves ensure safe, leak-free supply.

Power Generation: Metal seated valves manage superheated steam and high pressure.

Mining & Slurry Applications: Metal seated valves resist abrasion from solids.

Irrigation Systems: Resilient seated valves offer affordable and easy-to-operate solutions.

Conclusion: Which One is Right for Your Water System?

The choice between metal seated and resilient seated gate valves depends on your application, operating conditions, and budget.

For drinking water, irrigation, and wastewater systems, choose a resilient seated gate valve.

For high-pressure, high-temperature, or abrasive applications, a metal seated gate valve is the right choice.
