What is a WCB Pneumatic Knife Gate Valve

2026-07-22

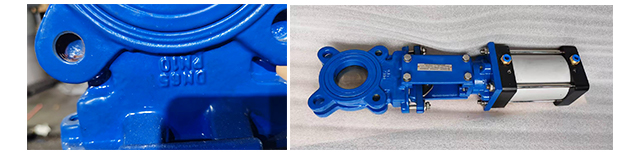

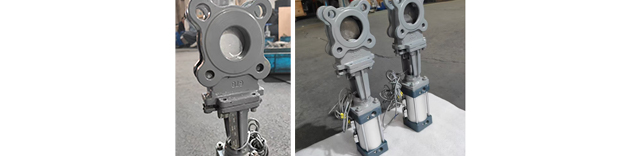

What is a WCB Pneumatic Knife Gate Valve?

A WCB Pneumatic Knife Gate Valve is a heavy-duty, pneumatically actuated gate valve specifically designed for shut-off and isolation of slurries, particulate matter, powders, and viscous fluids. Unlike conventional gate valves that rely on a wedge-shaped gate, the knife gate valve features a sharp, beveled gate (blade) that cuts through thick, fibrous, or particle-laden media to achieve a positive seal. The valve is constructed from WCB (Weldable Cast Carbon Steel) material, providing excellent strength and durability for demanding industrial environments.

The operating principle is simple and robust:

* A sharp, beveled gate (the "knife") moves vertically through a packing gland that seals around the gate

* When the valve is open, the gate is fully retracted into the bonnet, creating an unobstructed, full bore flow path

* When the valve is closed, the pneumatic actuator drives the gate down through the media, cutting through solids and seating against a replaceable seat (typically metal or UHMWPE)

* The pneumatic actuator (double-acting or spring-return) provides fast, reliable remote operation

* The valve has no body cavity where solids can accumulate — the gate passes through a packing chamber that is continuously purged or self-cleaning

Technical Specifications

Design Standard: JB/T8691-1998

Diameter Range: DN50-DN700

Pressure Range: PN10, PN16, 150Lb, 10K

Medium: Particulate matter, slurry, water, powder

Material: WCB

Application Fields: Mining, coal washing plants, wastewater treatment plants, food processing, etc.

Key characteristics of WCB Pneumatic Knife Gate Valves:

Sharp gate (knife edge) – Cuts through thick slurries, fibrous materials, and particulate matter

Unobstructed flow path – No body cavity — eliminates solids accumulation and plugging

Pneumatic actuation – Fast operation (1-5 seconds), remote control capable, failsafe options available

Full bore design – Minimal pressure drop, allows passage of large particles

Replaceable seat – Extends valve life; can be replaced without removing the valve from the line

WCB carbon steel construction – High strength, excellent durability for mining and industrial service

At WEIZIDOM, our WCB Pneumatic Knife Gate Valves are manufactured to JB/T8691-1998 design standards with strict quality control, ensuring reliable, long-lasting performance for mining, coal washing plants, wastewater treatment plants, food processing, and other applications handling particulate matter, slurry, water, and powder.

Main Function in Mining and Industrial Applications

Function	Description
Slurry Isolation in Mining & Coal Washing	Safely stops and starts the flow of mineral slurries, coal slurry, tailings, and concentrate — the knife edge cuts through thick, solids-laden media where conventional gate valves would jam or fail to close.
Particulate Matter Control	Handles dry or wet particulate matter (sand, gravel, crushed ore, coal fines) — the unobstructed, full bore flow path prevents settling and plugging.
Powder Handling in Processing Plants	Isolates flow of powders (cement, fly ash, lime, flour, chemicals) — the sharp gate cuts through compacted powder, and the absence of a body cavity prevents material packing.
Wastewater & Sludge Control	Controls flow in wastewater treatment plants — primary sludge, secondary sludge, grit slurry, and scum lines. The knife gate cuts through rag, stringy material, and debris that would wrap around ball or gate valve stems.
Food Processing Applications	Handles viscous food products, fruit pulp, vegetable slurries, and fibrous materials — the smooth, full bore flow path and easy cleanability meet food processing requirements.
Remote & Automated Operation	Pneumatic actuation enables remote control from a central control room — ideal for automated mining and processing plants. Can be integrated with PLC, DCS, or SCADA systems. Fast cycle times (1-5 seconds) for frequent operation.

In mining and industrial applications, the WCB Pneumatic Knife Gate Valve serves as a reliable, clog-resistant isolation device for slurries, particulate matter, powders, and viscous fluids.

Its primary functions include:

Typical applications within mining, coal washing plants, wastewater treatment plants, food processing, and other industries include:

Application Field	Specific Use
Mining & Mineral Processing	Ore slurry lines, tailings lines, concentrate transfer, sand handling, cyclone feed, thickener underflow
Coal Washing Plants	Coal slurry feed, refuse lines, clean coal transfer, magnetite slurry, dense medium circuits
Wastewater Treatment	Primary sludge, secondary sludge, grit slurry, scum lines, digester feed/ discharge, biosolids
Food Processing	Fruit pulp, vegetable slurries, viscous sauces, dairy products, starch slurry, fibrous materials
Pulp & Paper	Wood pulp, paper stock, white water, black liquor, sludge lines
Chemical Processing	Chemical slurries, polymer slurries, powder handling, catalyst transfer
Power Generation	Fly ash handling, lime slurry, FGD slurry, coal dust

Seat Material Selection Guide

Seat Material	Temperature Range	Abrasion Resistance	Shut-Off	Best For
UHMWPE	-40°C to +80°C	Excellent	Bubble-tight	Mining slurries, coal slurry, sand, abrasive powders
Stainless Steel (SS304/SS316)	-50°C to +400°C	Excellent	Moderate (metal-to-metal)	High temperature, abrasive service, steam
EPDM	-40°C to +120°C	Good	Bubble-tight	Water, mild slurries, wastewater, food
NBR (Buna-N)	-30°C to +100°C	Good	Bubble-tight	Oily slurries, petroleum-based media
PTFE	-200°C to +200°C	Fair	Bubble-tight	Chemical slurries, corrosive media

For most mining slurries and coal washing applications, UHMWPE seats provide optimal abrasion resistance and bubble-tight shut-off.

Pneumatic Actuator Options

Control Accessories:

Accessory	Function
Solenoid Valve	Electrically controls air supply to actuator — for on/off control from PLC/DCS
Limit Switches	Provides position feedback (open/closed) to control room
Positioner	Enables proportional control (throttling) — positions gate at any point between open and closed
Air Filter/Regulator	Provides clean, dry, regulated air to actuator — extends actuator life
Manual Override	Allows manual operation in case of air supply failure

Installation Notes for Mining and Industrial Systems

To ensure proper operation of the WCB Pneumatic Knife Gate Valve:

Installation Guideline	Reason
Ensure proper flow direction (check arrow on body)	Most knife gate valves are uni-directional — the seat is designed for pressure from one direction only. Incorrect installation will cause leakage.
Install with gate in vertical or horizontal orientation (as specified)	Consult WEIZIDOM for orientation limits — some designs require specific orientations for proper packing and gate guidance.
Provide clean, dry, lubricated compressed air to actuator	Contaminated air (water, oil, debris) damages actuator seals and solenoid valves — install air filter/regulator/lubricator (FRL).
For slurry service with settling potential, install with flow upward (vertical orientation)	Prevents solids from settling on the closed gate — ensures clean closure.
Install isolation valves upstream and downstream for maintenance access	Allows removal of knife gate valve without draining entire pipeline.
For automated applications, verify actuator sizing and cycle time meet process requirements	Under-sized actuator may not close against differential pressure — consult WEIZIDOM for sizing assistance.
For dry powder service, consider adding purge ports to prevent powder packing	Compressed air purge keeps powder from packing in the packing chamber.
For rag or fibrous media, install with upstream strainer or grinder (if heavy rag content)	Prevents excessive rag build-up that can prevent full closure.
