Stop Jamming Your Flow: Why Plug Valves Are the Robust Choice for Slurries, Chemicals & Steam

The Ultimate Guide to Plug Valves: Fast Isolation, Flow Diversion & High-Pressure Steam Solutions\

In demanding industrial environments—whether in an oil refinery, a chemical processing plant, or a high-pressure steam power station—reliable flow control is non-negotiable. Standard ball or gate valves often struggle with abrasive media, frequent cycling, or complex multi-directional flow requirements. When these challenges arise, engineers turn to a design that has proven its robustness for over a century: the Plug Valve.

A plug valve is a quarter-turn rotary valve that uses a cylindrical or tapered plug with a through-port to control fluid flow. By simply rotating the plug 90 degrees, the bore aligns with the pipeline to allow flow, or the solid face blocks the path to stop it. This straightforward, mechanically robust design offers exceptional reliability, especially in applications where self-cleaning action and fast operation are critical.

What sets the plug valve apart is its incredible versatility. It can be configured for simple 2-way isolation, or as a 3-way valve (L-port or T-port) for flow diversion and mixing—eliminating the need for multiple valves and complex piping. Furthermore, with the right material selection—ranging from standard carbon steel (WCB) to high-temperature chrome-moly (WC6) and corrosion-resistant stainless steel (CF8/CF8M)—plug valves can handle everything from abrasive slurries to aggressive acids and superheated steam.

In this comprehensive guide, we will explore the operating principles, key characteristics, and diverse applications of plug valves. We will also break down how to select the right port configuration, body material, and sealing mechanism to optimize your pipeline system for safety, efficiency, and longevity.

What is a Plug Valve?

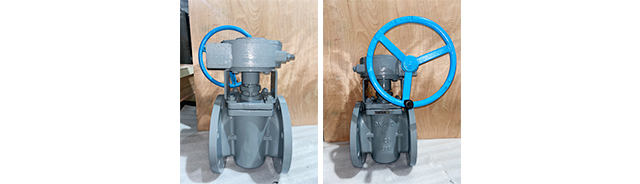

A Plug Valve is a quarter-turn rotary valve that uses a cylindrical or tapered plug with a through-port (bore) to control the flow of fluid. The plug rotates within the valve body to either align its bore with the pipeline axis (open position) or position the solid face of the plug against the flow path (closed position). This simple, robust design has been proven in demanding industrial service for over a century.

The operating principle is straightforward:

* The valve contains a tapered or cylindrical plug with a rectangular, round, or diamond-shaped port through its center

* When the valve is open, the plug is rotated so the bore aligns with the pipeline — allowing fluid to flow straight through with minimal pressure drop

* When the valve is closed, the plug is rotated 90 degrees so the solid face blocks the flow path

* A lubricant (in lubricated plug valves) is injected between the plug and body to reduce friction and provide sealing; non-lubricated designs use a sleeved plug (PTFE or other polymer) for sealing

Technical Specifications

Design Standard: API599, API6D, GB12240

Diameter Range: DN50-350

Pressure Range: Class 150～Class 1500, PN16-160

Medium: Water, steam, oil, etc.

Material: WCB, WC6, CF8, CF8M

Application Fields: Pipelines in various industries such as oil, chemical, pharmaceutical, fertilizer, and power.

Key characteristics of Plug Valves:

Quarter-turn operation – Fast 90-degree open/close action

Compact design – Short face-to-face length compared to gate valves

Multiple port configurations – 2-way (straight through), 3-way (L-port or T-port), or multi-port

Bidirectional or multi-directional flow – Can be designed for flow in multiple directions

Low pressure drop – Straight-through flow path when open

Self-cleaning action – Rotating plug wipes away debris from sealing surfaces

Fire-safe designs available – Metal-to-metal secondary sealing

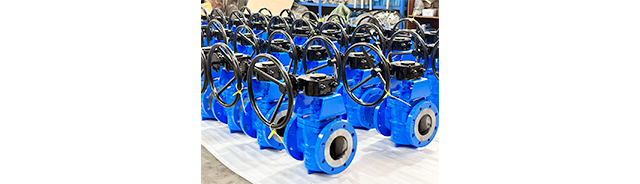

At WEIZIDOM, our Plug Valves are manufactured to API 599, API 6D, and GB12240 design standards with strict quality control, ensuring reliable, long-lasting performance for pipelines in oil, chemical, pharmaceutical, fertilizer, power, and other demanding industries.

Main Function in Mining and Industrial Applications

In mining and industrial applications, the Plug Valve serves as a reliable, fast-acting isolation and flow diversion device for water, steam, oil, and other process media.

Its primary functions include:

Typical applications within pipelines in oil, chemical, pharmaceutical, fertilizer, and power industries include:

Port Configurations

Material Selection Guide

Seal / Sleeve Options:

Why Plug Valves Remain the Robust Standard for Complex Flow Control

The Plug Valve is a testament to the power of intelligent, simple engineering. By utilizing a rotating plug, it delivers fast, quarter-turn isolation, low pressure drop, and a unique self-cleaning action that wipes away debris from sealing surfaces—making it far more resilient than many alternatives in dirty or high-cycle applications.

To ensure optimal performance, proper selection is key:

Port Configuration: Choose 2-way for standard isolation, L-port for diverting flow between two outlets, and T-port for mixing or distributing to both outlets simultaneously.

Body Material: Use WCB for general non-corrosive service, WC6 for high-temperature steam up to 540°C, and CF8/CF8M (Stainless Steel) for corrosive chemicals in pharmaceutical or fertilizer plants.

Sealing Option: Opt for PTFE sleeves for clean, corrosive media, lubricated metal-to-metal designs for high-temperature or abrasive service, and fire-safe metal seats for critical safety applications.

At WEIZIDOM, our Plug Valves are manufactured to rigorous API 599, API 6D, and GB12240 standards. With strict quality control and a wide range of materials and configurations, we provide the reliability your operations demand.

Don’t let complex flow control or harsh media slow down your production.

Contact WEIZIDOM today to discuss your specific requirements, request a technical consultation, or get a no-obligation quote for your next project.
