Flange Adapter vs Dismantling Joint: Full Comparison for Piping Systems 2026

In pipeline engineering, flange adapters and dismantling joints are two easily confused but functionally distinct fittings. Many engineers and purchasers mix them up, leading to wrong selection, installation trouble, higher maintenance costs, and even system failure.

This article clearly explains what a flange adapter is, what a dismantling joint is, their respective advantages, core differences in structure, features, applications, and gives you a direct selection guide. After reading, you will immediately know which one to use for your project.

In pipeline engineering, whether it’s a municipal water supply network, an oil and gas refinery, a chemical processing plant, or a commercial building’s plumbing system, pipe fittings play a critical role in ensuring the safety, efficiency, and longevity of the entire system. Among the most commonly used but easily confused fittings are flange adapters and dismantling joints. While both are designed to facilitate connections and maintenance in piping systems, they serve entirely different core functions—and choosing the wrong one can lead to costly mistakes: misalignment issues during installation, frequent leaks, increased maintenance downtime, higher labor costs, and even premature system failure.

Many engineers, purchasers, and project managers mix up these two fittings, assuming they are interchangeable. The truth is, a flange adapter is built for connection and conversion, while a dismantling joint is engineered for adjustment and easy maintenance. This comprehensive guide breaks down everything you need to know about each fitting: their definitions, key features, advantages, structural designs, and—most importantly—their core differences and application scenarios. By the end of this article, you’ll have a clear understanding of when to use a flange adapter, when to opt for a dismantling joint, and how to make the right selection for your specific project, whether it’s a small residential plumbing job or a large-scale industrial pipeline.

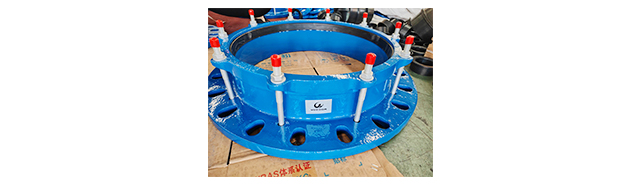

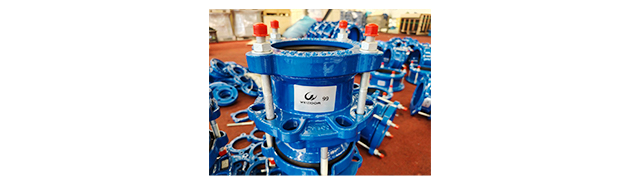

What Is a Flange Adapter?

A flange adapter—also commonly referred to as a flange coupling or flange connector—is a specialized pipe fitting designed to create a secure, leak-proof connection between two components in a piping system: typically a plain-end pipe (non-flanged) and a flanged component, such as a valve, pump, or another section of flanged pipe. It acts as a bridge between different types of connections, solving the problem of incompatibility between flanged and non-flanged parts.

Derived from the core functionality of flange connections, flange adapters are engineered to match international flange standards, including ANSI, DIN, GOST, and JIS, making them versatile enough to integrate into global piping systems. They are widely used across industries due to their simplicity, reliability, and cost-effectiveness, eliminating the need for complex welding or custom fabrication to connect mismatched components.

Key Features of Flange Adapter

- Structural Design:

A flange adapter has a fixed, non-telescopic body with two distinct ends: one flanged end (designed to match the bolt pattern and dimensions of standard flanges) and one socket or spigot end (shaped to fit tightly inside a plain-end pipe). This fixed structure means it cannot be adjusted for length, making it ideal for applications where a stable, permanent connection is required.

- Sealing Performance:

Equipped with high-quality gaskets (usually EPDM, NBR, or PTFE) to ensure a tight, leak-proof seal between the flanged component and the plain pipe. This sealing mechanism is critical for preventing fluid or gas leakage, which is essential in industries like oil and gas, chemical processing, and water treatment.

- Material Options: Typically manufactured from durable, corrosion-resistant materials to withstand harsh operating conditions. Common materials include ductile iron, carbon steel, stainless steel, and sometimes PVC for non-industrial applications. For example, in water and wastewater systems, ductile iron flange adapters with fusion-bonded epoxy coatings (RAL5017) are often used to resist corrosion and extend service life.

- Standard Compatibility:

Designed to work with different flange standards, allowing for cross-standard connections (e.g., connecting an ANSI flange to a DIN flange) without the need for custom adapters. This versatility makes flange adapters a go-to choice for projects with mixed piping components.

- Installation Simplicity:

Easy to install and disassemble—simply align the flanged end with the corresponding flange, secure with bolts and nuts (usually Dacromet-coated for corrosion resistance), and fit the socket end onto the plain pipe. No specialized tools or welding are required, reducing installation time and labor costs.

Advantages of Flange Adapter

1. Exceptional Versatility:

The biggest advantage of a flange adapter is its ability to connect flanged and non-flanged components, as well as different flange standards. This eliminates the need for extensive modifications to the piping system, saving time and money on custom fabrication.

2. Stable and Leak-Proof Connection:

The combination of a fixed structure and high-quality gaskets ensures a reliable, leak-free connection even under high pressure (up to PN100 for industrial-grade models). This stability is crucial for applications where fluid or gas leakage could lead to safety hazards or environmental damage.

3. Corrosion Resistance and Durability:

Made from robust materials with anti-corrosion coatings, flange adapters can withstand harsh environments, including exposure to chemicals, high temperatures, and underground conditions. This durability translates to a long service life, reducing maintenance and replacement costs over time.

4. Cost-Effective Solution:

Compared to welding or using custom flanged components, flange adapters are a more affordable option. They eliminate the need for skilled welders, reduce labor time, and can be reused if the piping system is reconfigured.

5. Wide Compatibility with Pipe Materials:

Works seamlessly with various pipe materials, including PE, PVC, HDPE, steel, and ductile iron. This flexibility makes it suitable for a wide range of applications, from residential plumbing to industrial pipelines.

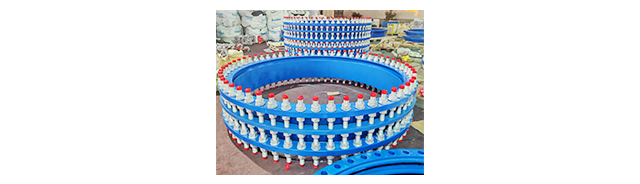

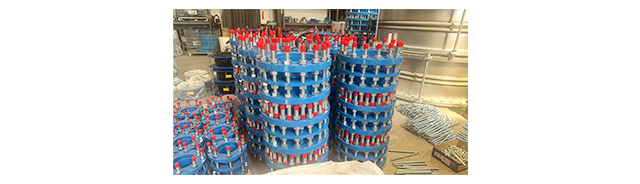

What Is a Dismantling Joint?

A dismantling joint—also known as a telescopic dismantling joint or expansion joint—is a specialized pipe fitting designed to provide axial length adjustment in piping systems. Unlike flange adapters, which focus on connection, dismantling joints are engineered to make installation, maintenance, and replacement of equipment (such as valves, pumps, and meters) easier by allowing for small adjustments in length.

In piping systems, misalignment, thermal expansion, and installation tolerances are common challenges. Dismantling joints solve these issues by providing a telescopic, adjustable structure that can compensate for these variables, reducing stress on equipment and ensuring a secure connection. They are particularly valuable in systems where equipment needs to be regularly removed or replaced, such as pump stations and valve chambers.

Key Features of Dismantling Joint

- Structural Design:

A dismantling joint has a telescopic body with dual flanged ends—one fixed flange and one movable flange—connected by tie rods. The tie rods allow for axial length adjustment (typically ±20–50mm, depending on the model) and lock the joint in place once the desired length is achieved. This telescopic design enables the joint to expand or contract, compensating for installation misalignment and thermal expansion.

- Length Adjustment:

The primary feature of a dismantling joint is its ability to adjust axially. This adjustment makes it easy to align flanged components (like valves and pumps) with the pipeline, eliminating the need to cut or modify pipes during installation or maintenance.

- Load Transmission:

Equipped with strong tie rods that transmit axial thrust from the pipeline to the equipment, protecting valves, pumps, and meters from excessive stress. This helps extend the service life of the equipment and reduces the risk of failure.

- Sealing Mechanism:

Uses high-performance seals (similar to flange adapters) to ensure a leak-proof connection even when adjusted. The seals are designed to withstand pressure and temperature variations, making them suitable for industrial applications.

- Material and Construction:

Typically made from carbon steel, stainless steel, or ductile iron, with corrosion-resistant coatings to withstand harsh operating conditions. The tie rods are often galvanized or Dacromet-coated to prevent rust and ensure long-term reliability.

Advantages of Dismantling Joint

1. Easy Installation and Maintenance:

The biggest advantage of a dismantling joint is its ability to simplify the installation and removal of equipment. By adjusting the length, engineers can easily align valves, pumps, or meters with the pipeline without cutting or welding, reducing downtime during maintenance or replacement.

2. Compensates for Installation Tolerance and Thermal Expansion:

Dismantling joints can adjust to compensate for small misalignments during installation, as well as thermal expansion and contraction in the pipeline. This reduces stress on the system and prevents leaks or equipment damage.

3. Protects Equipment from Pipeline Stress:

The tie rods in a dismantling joint absorb axial thrust, protecting valves, pumps, and meters from excessive pressure. This is particularly important in large-scale systems, such as municipal water transmission lines, where pipeline stress can cause equipment failure.

4. Reusable and Flexible:

Dismantling joints can be easily disassembled and reused if the piping system is reconfigured. This flexibility makes them a cost-effective option for projects that may require future modifications.

5. High Stability Under Pressure:

Despite their adjustable design, dismantling joints are built to withstand high pressure (standard models up to PN40, with industrial-grade options available for higher pressures). This stability ensures reliable performance in demanding applications.

Core Differences: Flange Adapter vs Dismantling Joint

While flange adapters and dismantling joints are both pipe fittings used in piping systems, their core functions, structures, and performance characteristics are fundamentally different. Understanding these differences is critical to selecting the right fitting for your project.

Below is a detailed breakdown of their key differences:

1. Functional Difference

The most significant difference between the two fittings lies in their core purpose:

- Flange Adapter: Its primary function is connection and conversion. It is designed to connect flanged components to non-flanged pipes (or vice versa) and to convert between different flange standards. It has a fixed length and does not allow for adjustment—its sole purpose is to create a stable, leak-proof connection.

- Dismantling Joint: Its primary function is adjustment and maintenance. It is designed to provide axial length adjustment, making it easy to install, remove, or replace equipment (valves, pumps, meters) in the pipeline. It does not focus on converting between flanged and non-flanged parts—instead, it connects two flanged components while allowing for flexibility.

2. Structural Difference

The structural design of each fitting directly reflects its functional purpose. Here’s a side-by-side comparison:

Item	Flange Adapter	Dismantling Joint
Structure	Fixed, non-telescopic body; one flanged end, one socket/spigot end	Telescopic body; dual flanged ends; connected by tie rods
Length	Fixed (no adjustment possible)	Adjustable axially (typically ±20–50mm)
Movement	No movement—fixed in place once installed	Axial expansion and contraction to adjust length
Main Parts	Body, flanged end, socket/spigot end, gasket, bolts, nuts	Body, fixed flange, movable flange, tie rods, seal, sleeve
Connection Type	Connects flanged to non-flanged components	Connects two flanged components

3. Performance Difference

The performance of each fitting is tailored to its core function:

- Flange Adapter: Prioritizes high pressure resistance and stable connection. Industrial-grade flange adapters can withstand pressures up to PN100, making them suitable for high-pressure applications like oil and gas pipelines. Their fixed structure ensures minimal movement, reducing the risk of leaks over time.

- Dismantling Joint: Prioritizes adjustability and equipment protection. While it can handle moderate pressures (standard up to PN40), its main strength is its ability to compensate for installation tolerance and thermal expansion, reducing stress on equipment and making maintenance easier.

Application Scenarios Comparison

The application of flange adapters and dismantling joints varies significantly based on their functional and structural differences. Below is a detailed comparison of their typical application scenarios, including real-world examples to help you better understand when to use each fitting:

1. Flange Adapter Typical Application Scenarios

Flange adapters are ideal for applications where a stable, fixed connection between flanged and non-flanged components is required, with no need for length adjustment.

Common scenarios include:

- PE / PVC / HDPE Pipe to Valve/Pump Connection: In municipal water supply and wastewater systems, PE or PVC pipes (plain-end) often need to be connected to flanged valves or pumps. Flange adapters provide a secure connection without the need for welding, which could damage the plastic pipes.

- Cross-Standard Flange Conversion: In international projects, piping systems may use different flange standards (e.g., ANSI in North America, DIN in Europe). Flange adapters allow for seamless connection between these standards, eliminating the need for custom flanges.

- Building Plumbing and HVAC Systems: In commercial and residential buildings, flange adapters are used to connect plain-end copper or steel pipes to flanged components like boilers, water heaters, and HVAC units. Their compact, fixed design makes them suitable for tight spaces.

- Fire Protection Systems: Fire sprinkler systems often use plain-end pipes that need to be connected to flanged valves and pumps. Flange adapters ensure a leak-proof connection, which is critical for fire safety.

- Low-Maintenance Buried Pipelines: In underground water or gas pipelines, flange adapters are used to connect plain-end pipes to flanged access points. Their corrosion-resistant design and fixed structure make them ideal for buried applications where maintenance is infrequent.

- Small-Scale Industrial Pipelines: In light industrial applications (e.g., food and beverage processing), flange adapters connect non-flanged process pipes to flanged valves and tanks, providing a cost-effective and reliable connection.

Dismantling Joint Typical Application Scenarios

Dismantling joints are ideal for applications where equipment needs to be regularly installed, removed, or replaced, or where length adjustment is required to compensate for misalignment or thermal expansion.

Common scenarios include:

- Large Pump Stations and Valve Chambers: In municipal water transmission and wastewater treatment plants, pumps and valves need to be regularly maintained or replaced. Dismantling joints allow for easy removal of this equipment without cutting the pipeline, reducing downtime and labor costs.

- Water Treatment Plants: In filtration and treatment systems, valves and meters are often located in tight spaces or require frequent calibration. Dismantling joints provide the flexibility to adjust the length, making installation and maintenance easier.

- Long-Distance Water Transmission Pipelines: These pipelines are subject to thermal expansion and contraction, which can cause misalignment. Dismantling joints compensate for this movement, reducing stress on the pipeline and equipment.

- Industrial Pipeline Maintenance: In chemical processing and oil refineries, equipment like pumps and valves needs to be regularly inspected and replaced. Dismantling joints simplify this process, allowing for quick removal and reinstallation.

- Systems with High Installation Tolerance: In construction projects where pipeline alignment is challenging (e.g., uneven terrain), dismantling joints can adjust to compensate for misalignment, ensuring a secure connection.

- Urban Pipe Networks: In crowded urban areas, pipeline maintenance is often time-sensitive and requires minimal disruption. Dismantling joints allow for quick equipment replacement, reducing the impact on surrounding infrastructure and residents.

Full Comparison Table

To summarize the key differences between flange adapters and dismantling joints, here’s a comprehensive comparison table that covers all critical aspects—perfect for quick reference during project planning:

Index	Flange Adapter	Dismantling Joint
Main Purpose	Connect flanged & non-flanged parts; cross-standard conversion	Easy disassembly, length adjustment, and equipment maintenance
Structure	Fixed, non-telescopic; one flange, one socket/spigot	Telescopic, adjustable; dual flanges, tie rods
Length Adjustment	No	Yes (axial, ±20–50mm typical)
Installation	Simple connection; no adjustment needed	Easy alignment; length adjustment for perfect fit
Maintenance	Basic; requires disassembly for component replacement	Extremely convenient; easy equipment removal without pipe cutting
Equipment Protection	General; no stress absorption	Excellent; absorbs axial thrust and compensates for movement
Pressure Rating	PN10–PN100 (industrial-grade)	PN10–PN40 (standard); higher ratings available
Typical Use	PE pipe conversion, building plumbing, fixed connections	Pump stations, valve maintenance, thermal expansion compensation
Best For	Projects requiring stable, leak-proof connections with no adjustment	Projects requiring frequent maintenance or length adjustment

How to Select: Quick Guide

To help you make the right selection quickly, here’s a step-by-step guide based on your project’s specific needs:

1. Assess Your Connection Needs: If you need to connect a plain-end pipe to a flanged component (or vice versa), or if you need to convert between different flange standards → Flange Adapter.

2. Consider Maintenance Requirements: If you need to easily install, remove, or replace valves, pumps, or meters → Dismantling Joint.

3. Check for Length Adjustment Needs: If your project has installation misalignment, thermal expansion, or requires length flexibility → Dismantling Joint.

4. Evaluate Pressure Requirements: If your system operates at high pressure (PN40–PN100) and requires a fixed, stable connection → Flange Adapter.

5. Consider the Application Type: For municipal water supply, small pump stations, or building plumbing → Flange Adapter. For large pump stations, water treatment plants, or industrial maintenance → Dismantling Joint.

6. Think About Pipe Material: For PE, PVC, or HDPE pipes (plain-end) → Flange Adapter. For flanged steel pipes requiring adjustment → Dismantling Joint.

Flange adapters and dismantling joints are both essential pipe fittings in modern piping systems, but they serve distinct purposes. Flange adapters are the go-to choice for connection and conversion, providing a stable, leak-proof link between flanged and non-flanged components. Dismantling joints, on the other hand, are designed for adjustment and maintenance, making it easy to install, remove, and replace equipment while compensating for misalignment and thermal expansion.

Choosing the right fitting is critical to the success of your piping project. By understanding their core differences, features, and application scenarios, you can avoid costly mistakes, reduce maintenance downtime, and ensure the long-term reliability of your system. Whether you’re working on a small residential plumbing job, a municipal water network, or a large-scale industrial pipeline, this guide provides the knowledge you need to select the perfect fitting for your needs.

If you still have questions about flange adapters, dismantling joints, or need help selecting the right fitting for your specific project, feel free to contact our team of piping experts for professional support.
