New Type Check Valve is coming!

2022-06-10

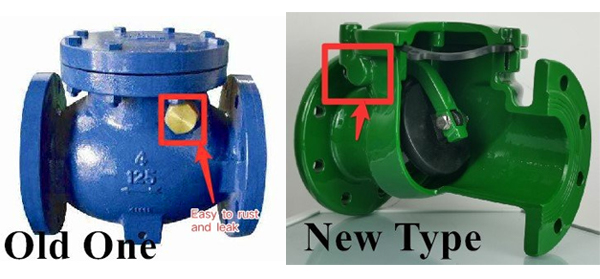

The blue printed check valve is common for our project. The leakage class is C/D. As we marked in the picture, the medium is easy to leakage from these places. This new kind of check valve can not only solve the problem of water leakage caused by the easy rusting of the valve body, but also ensure the universality of the valve body. That means: When the valve plate is damaged, you can directly purchase accessories for replacement without replacing the entire valve. Wouldn't it save both time and money?

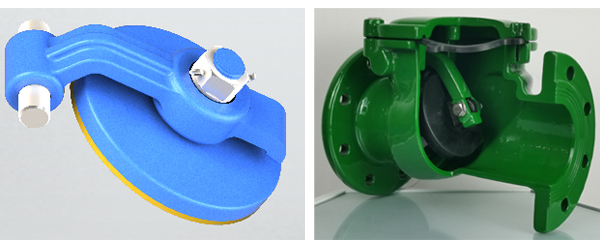

The common rocker and valve disc on the market are shown in the figure below. The structure is composed of valve office, rocker rod, nut and split pin. The back rod of the valve office needs to be threaded, and the rocker rod is limited between the two by the nut, and then Drill holes on the nut and fix the nut with a split pin. The disadvantage is that the valve disc needs to be processed. After the valve disc is sprayed, the nut is not easy to install, and the threaded part is easy to rust, shortening the service life.

The newly designed valve body structure can solve the above problems at the same time. The connecting parts of the valve office and the rocker are formed by one-time casting of the positioning hole by improving the mold process, which ensures the universality of the rotating structure in the valve body, thereby solving the universality of all valve body accessories. It is suitable for mass production.

Then let me show you more data about this new check valve.

Standard: American Standard; Germany Standard; British Standard

Size: DN50 ~DN300

Leakage class: Routine is Class A/0 leak!

Sealing: EPDM or Brass can be chosen.
