In many fields such as industrial automation, water treatment, energy and chemical industry, agricultural irrigation, etc., choosing the right flow meter directly affects project efficiency, measurement accuracy and subsequent maintenance costs.



There are many types of flow meters on the market, and different flow meters are suitable for different media and working conditions. So, how to choose the right flow meter?



This article will comprehensively analyze the principles, characteristics and application scenarios of 7 common flow meters to help you efficiently select and accurately purchase.

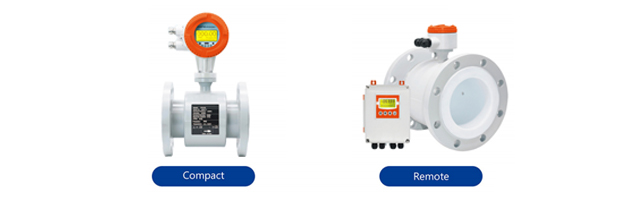

Electromagnetic Flow Meter



WSDLD magnetic flow meter, also known as electromagnetic flow meter or mag meter, is widely used because less obstruction, cost-effective and accurate measurement. Electromagnetic flow meter don't have any moving parts to wear down, reducing the need for maintenance or replacement. We offer flow meters with a range of liners, electrodes, and sizes, which can meet various conductive liquids.



Features of Electromagnetic Flow Meter:



* No moving parts, no pressure loss.



* Self-diagnosis, empty pipe alarm, exciting alarm, high and low flow alarm.

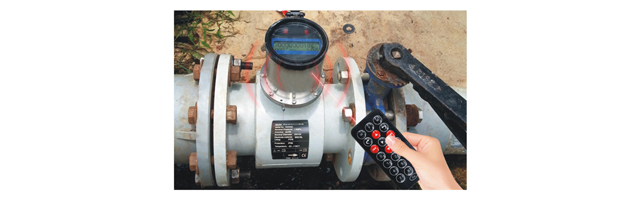

* Infrared telecontrol keyboard.



* Recording time when power off, record power broken time automatically.



* Dual frequency excitation and stable zero point.



* Precision coil winding technology, makes magnetic field more uniform.



* Built-in reference electrodes, no need to connect ground ring.



* Measure forward and reverse direction flows.



* High accuracy: ±0.5%of reading, ±0.2%optional, velocity>0.5m/s.



Industrial applications of electromagnetic flow meters:



* Effluent Treatment Plant



* Sewage Treatment Plant Water Supply Scheme



* Steel & Aluminum Industries



* Chemical & Fertilizer Industries



* Dairy Industries



* Sugar Industries



* Textile Processing Industries



Applications of electromagnetic flow meters:



* Raw Water



* Potable Water



* Sea Water



* Waste Water



* Pulp &Beverages Acidic & Alkaline Solution



* Heat Exchanger Industrial



* Cooling Water



* Brine Solutions

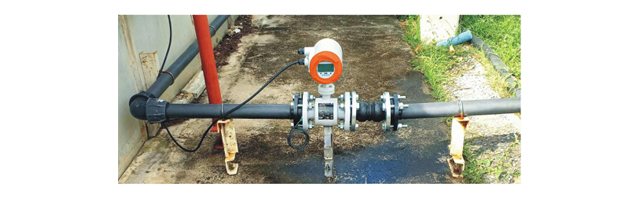

Battery-powered electromagnetic flow meter



Description of Battery-powered electromagnetic flow meter



WSDLD battery-powered electromagnetic flow meter is an ideal flow measurement device for water and wastewater systems located at remote sites. Various signal and communication are availble, like 4-20mA, pulse, RS485 etc. All real-time flow data can be monitored on computer or mobile phone by GPRS.Beside flow,it also can measure temperature or pressure. With 5pcs of 3.6V lithium battery, lifespan is up to 8years, and battery can be changed when its used up. The transmitter body is SS304 and the protection grade is IP68, which is available to be buried or submerged in the water.



Industries of Battery-powered electromagnetic flow meter:



* Effluent Treatment Plant



* Sewage Treatment Plant Water Supply Scheme



* Steel & Aluminum Industries



* Food & Drug Industries



* Chemical &Fertilizer Industries



* Dairy Industries



* Sugar Industries



* Textile Processing Industries

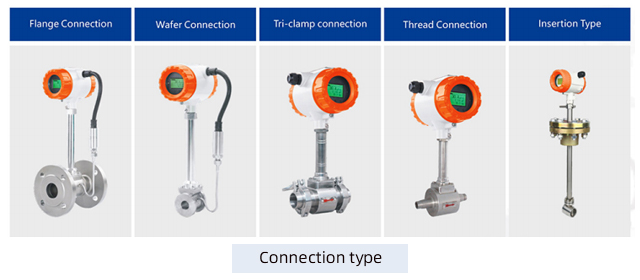

Vortex Flow Meter



Vortex Flow meter works on the Karman vortex street principle that swirls generated by a bluff body in the pipe.The number of swirls are proportional to the volumetric flow in the pipe. Vortex flow meter widely used for gases, steam and liquid applications. It is ideal for measuring saturated and superheated steam in large facilities to improve steam production efficiency.



Principle of Vortex Flow Meter:



When the fluid in the pipeline passes the burble generator(triangular prism), burble will generate due to the acceleration of partial flow rate.The burble will rise alternatively in two burble lines, which is called Karman vortex.



The releasing frequency of Karman vortex depends on the size of triangle prim and flow rate of fluid, while independent of the medium feature parameter,such as the temperature,pressure,it can be indicated by the following formulas:



Application of Vortex Flow Meter:



Applications in the chemicals and petrochemicals industries, for example, in power generation and heat-supply systems involve widely differing fluids: saturated steam, superheated steam, compressed air, nitrogen, liquefied gases, flue gases, carbon dioxide, fully demineralized water, solvents, heat-transfer oils, boiler feed water, condensate, etc.



Features of Vortex Flow Meter:



* Integrated pressure and temperature compensation



* 4-20mA, pulse with HART or pulse with RS485 are selectable



* Wide temperature range up to highest temperature 350℃



* Adopt Japan OVAL technology and design



* Embedded sensor, 4 pie zo-electric crystal encapsulated inside the sensor.



* No moving parts, no abrasion, non-wearing parts inside, fully welded SS304 body(SS316

selectable).

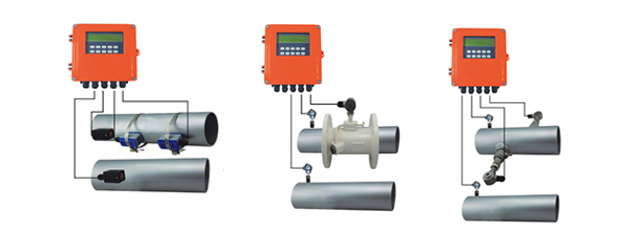

Wall mounted UItrasonic Flow Meter



Feature of Wall mounted UItrasonic Flow Meter



* High Accuracy Accuracy better than 1%.



* Measure Range



Select different model sensors, can achieve DN15-DN6000mm pipe flow measurement.



* High Reliability



Adopt low voltage, multi-pulse radiating circuit. Accuracy, Lifetime and Reliability are better.



* High Anti-interference



Adopt double balanced signal differential transmission, receiving circuit, effective resist the drive, tower, Strong power lines and other source of interference.



* Powerful Memory Function



Automatic memory the cumulative flow of 512 days before, 128 months before, 10 years before. Automatic memory the power-on and off of 64times before and the flow. Automatic memory the meter working condition of 32days before.



* Support Temperature Sensor



Connect with Temperature sensor, it can measure heat flow.



* Support SD card memory-1



Select SD card memory, it can realize mass storage by ultrasonic flow meter



Introduction of Wall mounted UItrasonic Flow Meter



* The PUFM UItrasonic Flow meter is widely used to measure different kinds of liquid.



* Transmitter and transducer install separately. Transmitter can install a indoor, Instrument cabinet, Dashboard.



* Transducer install on the pipes. Transmitter and Transducer connect by special cable,



* It can realize to measure flow. Connect with temperature sensor, it can measure heat flow.



* Widely used in Running water, Heating, Water conservation, Metallurgy, Chemical industry, Machinery, Energy etc.



* Used for production monitoring, water balance testing, thermal equilibrium network

commissioning, energy monitoring.



* It is the most important flow measure instrument during manufacturing process.

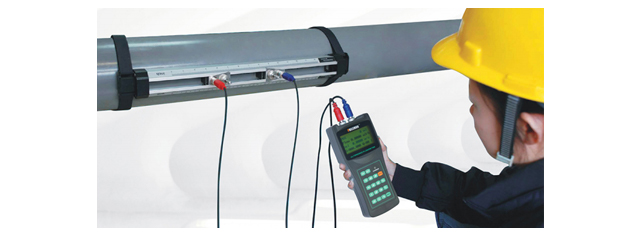

Handheld Ultrasonic Flow Meter



Introduction of handheld ultrasonic flow meter:



The handheld ultrasonic flow meter is designed to work with clamp-on transducers to enable the flow of a liquid within a closed pipe to be measured accurately without needing to insert any mechanical parts through the pipe wall or protrude into the flow system.



Using ultrasonic transit time techniques, the flow meter is controlled by a micro-processor system which contains a wide range of data that enables it to be used with pipes with an outside diameter ranging from 15mm up to 6000mm (depending on model) and constructed of almost any material.The instrument will also operate over a wide range of fluid temperatures.



Feature of handheld ultrasonic flow meter:



*High Accuracy



Accuracy better than 1%



* Wide Measurement Range



Measurement range from DN15~DN6000mm



* Rechargeable Power Supply



Built-in high-capacity NiMH rechargeable batteries will last more than 10 hours(Fully charged).



* Non-invasive Measurement



Can achieve measurement with clamp on sensors



* Data Storage



32K BIT built-in data storage,can store two thousand rows of data



* LCD Display



LCD display can display the instant flow, total flow, flow velocity and working condition



Application of handheld ultrasonic flow meter:



* Petroleum & Chemical



* Water supply



* Supply heating



* Building Energy Conservation



* Metallurgy



* Power plant

Only by understanding the differences in the principles, characteristics, applications, etc. of various flow meters in detail can you choose the appropriate flow meter more easily. Have you learned it?
