Shocking: Most Oil & Gas Leaks & Blasts Are Caused by Misused Valves!

2026-05-11

Optimizing Oil & Gas Flow Systems: The Role of Key Valves, Pipes & Fittings

Oil and gas systems operate under high pressure, high temperature, and harsh corrosive environments, requiring reliable components to ensure safe, efficient, and stable operation. From onshore drilling to offshore platforms, from refining processes to long‑distance transmission, every valve, pipe, fitting, and flange plays an irreplaceable role.

This article clearly explains the core functions, typical applications, and recommended materials of **Gate valves, butterfly valves, globe valves, ball valves, check valves, plug valves, knife gate valves, Control valves, pipes, fittings, flanges** in oil and gas projects, with recommended materials: **Carbon steel, forged steel, stainless steel**.

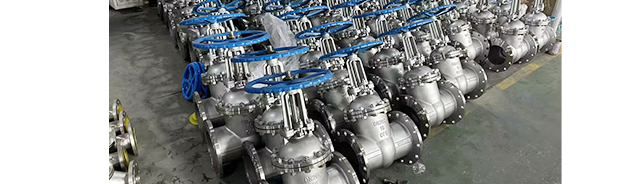

1. Gate Valves in Oil & Gas Systems

Core Function

Gate valves are mainly used for **full opening or full closing** of crude oil, natural gas, and refined oil pipelines. They provide extremely low flow resistance when fully open, minimize pressure loss, and are widely used for pipeline isolation during maintenance and emergency shutdowns.

Application Scenarios

- Main transmission pipelines for oil and gas

- Station inlet/outlet and manifold pipelines

- Large‑diameter long‑distance pipelines

Recommended Materials

Carbon steel: General medium‑pressure and medium‑temperature pipelines

Forged steel: High‑pressure and high‑temperature wellhead and gathering systems

Stainless steel: Sour gas and corrosive medium environments

2. Butterfly Valves in Oil & Gas Systems

Core Function

Butterfly valves realize on/off and throttling by rotating the disc. They feature **compact structure, light weight, quick operation**, and are suitable for large‑diameter low‑pressure to medium‑pressure occasions, supporting flow regulation.

Application Scenarios

- Refinery cooling water and circulating oil systems

- Large‑diameter auxiliary pipelines and vent lines

- Storage tank farm inlet/outlet and fire protection systems

Recommended Materials

Carbon steel: Conventional non‑corrosive working conditions

Stainless steel: Corrosive gas and liquid pipelines

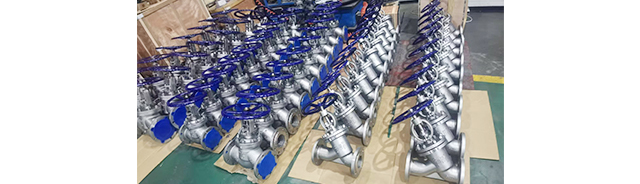

3. Globe Valves in Oil & Gas Systems

Core Function

Globe valves use linear movement of the disc to **precisely control flow and pressure**, with excellent sealing performance. They are ideal for occasions requiring accurate adjustment and are not suitable for large‑particle media.

Application Scenarios

- Instrument air and auxiliary steam systems

- Small‑flow high‑precision control pipelines

- Pressure regulating branch and bypass pipelines

Recommended Materials

Forged steel: High‑pressure small‑caliber occasions

Stainless steel: Corrosive and high‑purity media

4. Ball Valves in Oil & Gas Systems

Core Function

Ball valves achieve **90° quick opening/closing** with rotating ball structure, featuring zero leakage, strong sealing, and wide adaptability to high pressure, high temperature, and harsh media. They are core components in oil and gas systems.

Application Scenarios

- Wellhead Christmas tree and manifold systems

- Natural gas transmission and distribution stations

- LNG storage and transportation pipelines

- Refinery key process pipelines

Recommended Materials

Forged steel: High‑pressure Class 600–2500 working conditions

Stainless steel (316L): Offshore and sour gas environments

Carbon steel: General transmission pipelines

5. Check Valves in Oil & Gas Systems

Core Function

Check valves automatically open/close relying on medium pressure to **strictly prevent backflow**, protect pumps, compressors, and key equipment from damage caused by reverse flow, and maintain one‑way flow stability.

Application Scenarios

- Pump outlet and compressor outlet pipelines

- Multi‑source connected supply networks

- Heating and process medium return pipelines

Recommended Materials

Carbon steel: General oil and gas pipelines

Forged steel: High‑pressure pump stations

Stainless steel: Corrosive medium occasions

6. Plug Valves in Oil & Gas Systems

Core Function

Plug valves use rotating plug to realize quick switching, with simple structure, small flow resistance, and strong dirt resistance. They support multi‑way flow distribution and are suitable for frequent operation.

Application Scenarios

- Storage tank farm blending and distribution systems

- Mud and medium with small particles

- Multi‑branch process switching pipelines

Recommended Materials

Carbon steel: Conventional working conditions

Stainless steel: Corrosive media

Forged steel: High‑pressure occasions

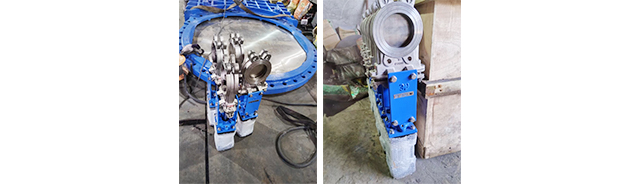

7. Knife Gate Valves in Oil & Gas Systems

Core Function

Knife gate valves use sharp gate to cut media, **especially suitable for slurry, particles, and viscous media**, with anti‑clogging and compact structure.

Application Scenarios

- Sludge and residue pipelines in refineries

- Coal water slurry and oil sand slurry systems

- Sewer and waste liquid discharge pipelines

Recommended Materials

Carbon steel: General particle media

Stainless steel: Corrosive slurry working conditions

8. Control Valves in Oil & Gas Systems

Core Function

Control valves automatically adjust flow, pressure, temperature, and liquid level according to system signals, **realizing intelligent and stable control** of oil and gas processes.

Application Scenarios

- Distillation tower and reactor flow control

- Natural gas pressure regulating and metering stations

- Refinery temperature and pressure closed‑loop control systems

Recommended Materials

Forged steel: High‑pressure high‑precision control

Stainless steel: Corrosive medium regulation occasions

9. Pipes in Oil & Gas Systems

Core Function

As the **transport carrier** of the whole system, pipes undertake long‑distance and all‑weather delivery of crude oil, natural gas, refined oil, and various media.

Application Scenarios

- Onshore/offshore long‑distance transmission pipelines

- Wellhead casing and tubing

- Refinery process pipelines

Recommended Materials

Carbon steel: Most conventional transmission pipelines

Forged steel: High‑pressure thick‑wall tubing

Stainless steel: Offshore, sour gas, and chloride ion environments

10. Fittings in Oil & Gas Systems

Core Function

Pipe fittings connect pipes, change direction, branch, and reduce diameter, forming a **complete pipe network** that adapts to complex layout needs.

Common Types

Elbows, tees, reducers, caps, couplings, etc.

Application Scenarios

- Pipeline turning and branching

- Equipment inlet/outlet connections

- System modification and expansion

Recommended Materials

Matching with pipes: **Carbon steel, forged steel, stainless steel**

11. Flanges in Oil & Gas Systems

Core Function

Flanges provide **detachable high‑strength sealing connections** between pipes, valves, and equipment, ensuring no leakage under high pressure and high temperature.

Application Scenarios

- Valve and equipment pipeline connections

- Pipeline maintenance easy disassembly sections

- Station and plant area key nodes

Recommended Materials

Carbon steel: Standard connections

Forged steel: High‑pressure Class 600+

Stainless steel: Corrosive environment flanges

Common Customer Pain Points in Oil & Gas Projects

- Leakage: Caused by improper material selection, poor sealing, or installation

- Severe corrosion: Especially in sour gas, offshore, and chloride environments

- Pressure loss: Improper valve type or size selection

- Blockage: Particle and slurry media cause valve jamming

- Frequent maintenance: Unsuitable materials lead to short service life

Product Selection Guidance for Oil & Gas Systems

Component	Main Function	Typical Applications	Recommended Material
Gate Valves	On/off service, low flow resistance	Main pipelines, manifolds, station isolation	Carbon Steel; Forged Steel (HP/HT); Stainless Steel (sour service)
Butterfly Valves	On/off & basic throttling	Large dia low pressure lines, tank farms	Carbon Steel; Stainless Steel (corrosive)
Globe Valves	Precise flow & pressure control	Instrument lines, small bore control	Forged Steel; Stainless Steel
Ball Valves	Quick on/off, zero leakage, high pressure	Wellheads, transmission, LNG	Forged Steel; Stainless Steel (316L); Carbon Steel
Check Valves	Prevent backflow	Pump/compressor discharge	Carbon Steel; Forged Steel; Stainless Steel
Plug Valves	Quick switching, multi way flow	Blending, tank farms, slurry lines	Carbon Steel; Forged Steel; Stainless Steel
Knife Gate Valves	Slurry / particle media shut off	Sludge, waste, oil sand slurry	Carbon Steel; Stainless Steel
Control Valves	Auto flow/pressure/temp control	Process units, metering stations	Forged Steel; Stainless Steel
Pipes	Medium transportation	Long distance, process, wellhead	Carbon Steel; Forged Steel; Stainless Steel
Fittings	Connect, turn, branch, reduce	All pipeline networks	Match pipe material
Flanges	Detachable high strength connection	Valve/equipment joints	Carbon Steel; Forged Steel; Stainless Steel

Gate valves: Focus on diameter, pressure class, and medium; large‑diameter full port preferred

Butterfly valves: Select based on pressure resistance and regulation needs; large‑diameter low‑pressure priority

Globe valves: For precise adjustment; small‑caliber high‑pressure use forged steel

Ball valves: Key high‑pressure links use forged steel; corrosive environments use 316L

Check valves: Match pump and compressor parameters to prevent backflow

Plug valves: Frequent operation and particle media preferred

Knife gate valves: Slurry and viscous media dedicated

Control valves: Match control accuracy and medium characteristics

Pipes & fittings: Match pressure, temperature, and corrosion level; unified material with flanges

Materials summary:

Carbon steel: Cost‑effective for general working conditions

Forged steel: High‑pressure high‑strength key parts

Stainless steel: Corrosive, sour gas, offshore environments

Frequently Asked Questions (FAQ)

Q1: Can gate valves be used for flow regulation in oil and gas?

A: Gate valves are designed for on/off service; **not suitable for precise throttling**. Long‑term half‑open causes erosion and vibration. Use globe valves or control valves for regulation.

Q2: How to choose between carbon steel and stainless steel?

A: Use **carbon steel** for conventional oil and gas with no corrosion. Use **stainless steel** for H₂S, Cl⁻, seawater, and offshore environments. Use **forged steel** for high‑pressure wellhead and high‑grade occasions.

Q3: Why are flanges and fittings material‑matched?

A: Inconsistent materials cause galvanic corrosion, strength mismatch, and leakage risk. Full‑line matching ensures safety and stability.
