What is a flange adapter?

What is a flange adapter?

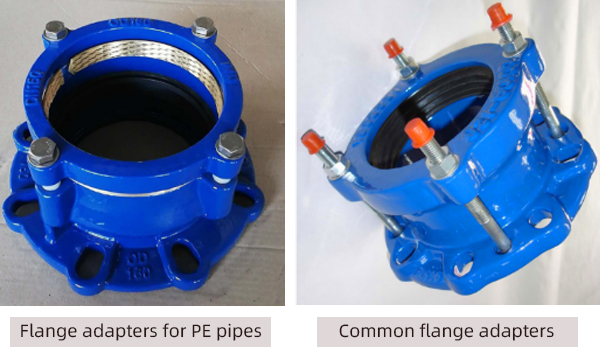

A flange adapter, also known as a flange coupling or flange connector, is a device used to connect two pipes or fittings with flanged ends. It provides a method for joining different types of flanges or connecting flanged components to non-flanged equipment or systems.

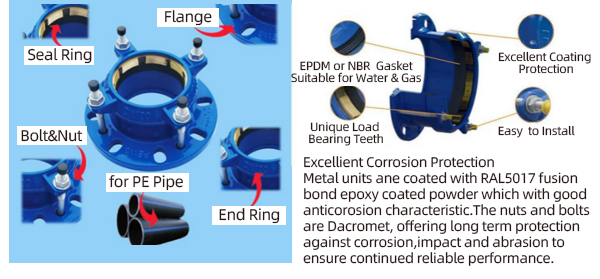

The primary purpose of a flange adapter is to create a secure and leak-proof connection between two flanged components. It consists of two parts: a flange on one end and a socket or spigot on the other end. The flange end is designed to match the bolt pattern and dimensions of the flanged component, while the socket or spigot end is designed to fit inside the non-flanged component or pipe.

The flange adapter is typically made of a durable and corrosion-resistant material such as steel, stainless steel, or ductile iron. It may also have a gasket or sealing element to ensure a tight and reliable seal between the flanges.

Flange adapters are commonly used in various industries and applications, including water and wastewater treatment, oil and gas, chemical processing, HVAC systems, and plumbing. They allow for easy installation, disassembly, and maintenance of flanged connections, providing flexibility and adaptability in piping systems.

Flange adapters offer several advantages in piping systems and connections:

1. Versatility:

Flange adapters allow for the connection of different types of flanges, such as ANSI, DIN, or JIS flanges, enabling compatibility between different flange standards. This versatility makes it easier to connect and integrate various components and piping systems.

2. Flexibility:

Flange adapters provide flexibility in adapting flanged components to non-flanged equipment or systems. They allow for the connection of flanged pipes to valves, pumps, or other equipment that may not have flanged ends, eliminating the need for extensive modifications or welding.

3. Easy installation and removal:

Flange adapters simplify the installation and removal process compared to welding or other permanent joining methods. They can be easily aligned and bolted together, reducing downtime during maintenance or repairs.

4. Leak-proof connections:

The use of gaskets or sealing elements with flange adapters ensures a tight and leak-proof connection between flanged components. This helps prevent fluid or gas leakage, promoting safety and efficiency in the piping system.

5. Cost-effective:

Flange adapters can be a cost-effective solution compared to welding or using custom-made flanged components. They eliminate the need for complex fabrication, reduce labor costs, and enable faster installation and disassembly.

6. Durability and reliability:

Flange adapters are typically made from sturdy and corrosion-resistant materials, ensuring long-lasting performance and reliability in demanding environments. They can withstand high pressures, temperature variations, and chemical exposures.

7. Modular design:

Flange adapters allow for modular construction and easy reconfiguration of piping systems. They can be easily disconnected and reused, offering flexibility in system design, modification, or expansion.



Flange adapters have numerous applications across various industries and piping systems. Some common applications include:

1. Water and wastewater treatment:

Flange adapters are used to connect pipes, valves, and fittings in water treatment plants, sewage treatment plants, and distribution networks.

2. Oil and gas industry:

Flange adapters are utilized in oil refineries, petrochemical plants, and offshore platforms to connect pipelines, valves, pumps, and other equipment.

3. Chemical processing:

Flange adapters are used in chemical plants, pharmaceutical facilities, and industrial processing plants to connect pipes carrying various chemicals and fluids.

4. HVAC systems:

Flange adapters are used in heating, ventilation, and air conditioning (HVAC) systems to connect ductwork, fans, and other HVAC components.

5. Plumbing and building construction:

Flange adapters are employed in plumbing systems to connect pipes, fixtures, and appliances in residential, commercial, and industrial buildings.

6. Power generation:

Flange adapters are used in power plants, including thermal power plants and renewable energy facilities, to connect piping systems for steam, gas, and water.

7. Mining and mineral processing:

Flange adapters are utilized in mining operations and mineral processing plants to connect pipelines for transporting minerals, ores, and other materials.

8. Food and beverage industry:

Flange adapters are used in food processing plants, breweries, and beverage production facilities to connect pipes, tanks, and process equipment.

9. Marine and shipbuilding:

Flange adapters are employed in shipbuilding and marine applications to connect piping systems for fuel, water, and other fluids.

10. Fire protection systems:

Flange adapters are used in fire protection systems to connect pipes, valves, and sprinklers for the distribution of water or fire suppressant agents.
