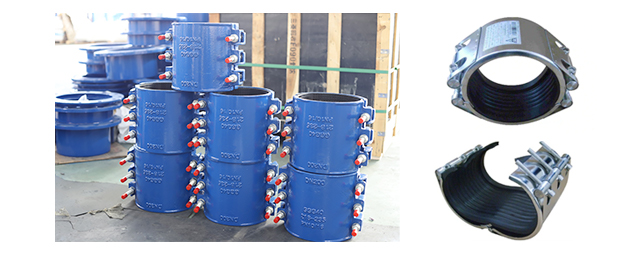

What is a pipe patcher?

2023-11-06

Pipe patcher is a device used for pipe repair. It is strong and corrosion-resistant and does not require welding.

Pipe patcher features:

① Flexible connection

② Sturdy and corrosion-resistant

③ No need for welding

④ No fire risk

⑤ Save space

⑥ No limit on pipe materials

⑦ Sealing under pressure

⑧ Easy to install

Application areas of pipe patchers:

Surface/underground engineering, shipbuilding/offshore oil platforms, water, gas/natural gas supply, electricity, industrial production, sewage treatment and maintenance, etc.

Advantages of pipe patcher:

① Universality:

It is suitable for any pipe material, can connect pipes with different materials, different axial directions and different diameters, and is suitable for quick repairs.

② Economy:

The pipe ends can be connected without processing, and both thin-walled and thick-walled pipes are available. The installation is simple and the construction cost is greatly reduced.

③ Reliability:

It can compensate for axial displacement and angular deflection, and the lip-like structure of the rubber ring can enhance the sealing effect as the pressure increases.

④ The materials used vary depending on the usage environment.

Installation of patcher:

① During repair work, an appropriate amount of butter (water in emergency situations) should be applied as lubricant on the contact surface of the shell and the rubber ring;

② Open the repair device, pay attention to the protruding end of the apron socket should exceed the guide plate, align the apron cutting opening in the shell, and then put it on the area to be repaired. The incision of the apron should avoid leakage as much as possible. leak;

③ When installing, use a rubber hammer to tap the stainless steel shell to make the gap between the circumferential direction of the shell and the repaired pipe as uniform as possible;

④ During installation, before the baffle enters the other half, pay attention to whether the upper and lower ends of the baffle are in contact with the shell to prevent damage to the baffle;

⑤ After the baffle is fully inserted, use a multifunctional hexagonal wrench to tighten, and use a torque hexagonal wrench to tighten the bolts.
